WXGA (1280 x 800), DLP, VGA, HDMI 1.4a x 3, VGA, USB-A, RS232, RJ45, NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Superior lens performance, brighter-than-ever images, comprehensive networking capabilities, and room-filling internal audio -- all in a projector designed to work seamlessly with the devices you’re already using.

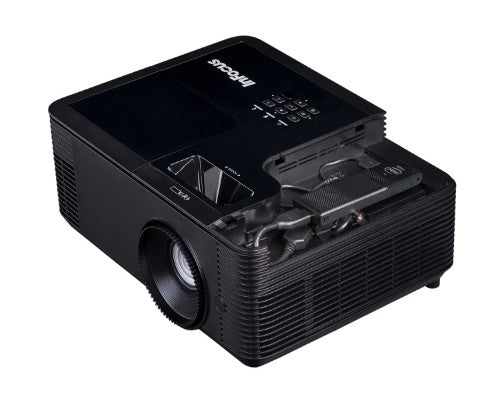

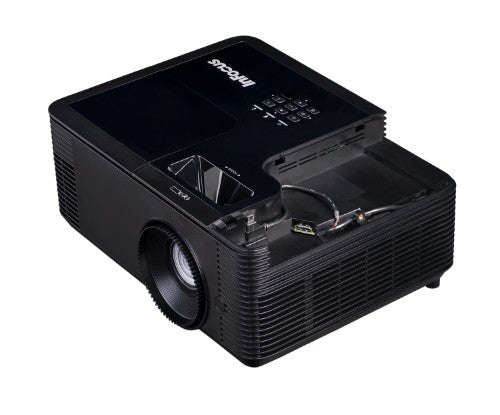

Customize your projector using TechStation

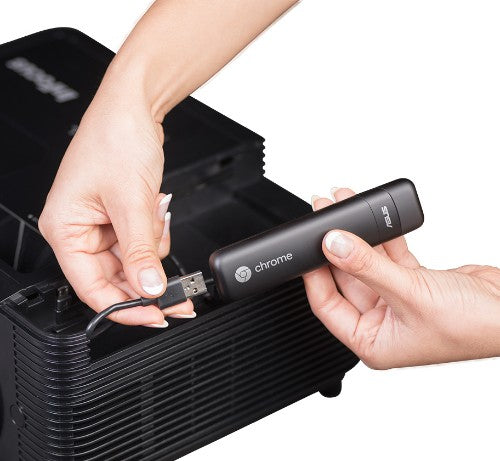

With an HDMI port and multiple ways to connect your devices, the TechStation superpowers your projector and enables more effective learning by working seamlessly with the tools you already use. After connecting your device, close up the TechStation’s lid to create a streamlined, all-in-one solution for streaming audio and video.
IN2130 Series projectors work with:
- Google ChromeCast Ultra
- Intel Computer Stick
- Asus Chromebit
- Amazon Fire TV Stick
- Android stick
- And more HDMI-supported devices to enable casting, streaming, and wireless
Exceptional Sound Quality
IN2130 Series projectors were designed to provide better-than-ever sound quality through a 10W speaker. Whisper-quiet operating technology means you’ll never have to compete against your projector to be heard during meetings or presentations.
Brighter, Sharper Images in Any Light
With 4,500 lumens and an amazing 28,500:1 contrast ratio, the IN2136 projects sharper, clearer images no matter the lighting in your office or conference room. Plus BrilliantColor™ DLP imaging technology ensures images shine with over 1 billion colors that ensure life-like color accuracy and eye-catching presentations.
Superior Lens Performance
The IN2136 projector offers high quality optics with 1.3x zoom ration, clear focus, and full HD resolution. The projector delivers a longer throw so you have more flexibility on where to mount.
More Ways to Connect and Control
InFocus ProjectorNet 4.1 software lets you remotely manage and support your projector from a single computer via your existing network. Or quickly connect the IN2136 projector to your internal network for easy remote management. You can also simply sync with Crestron Roomview or AMX Device Discovery.
Infocus

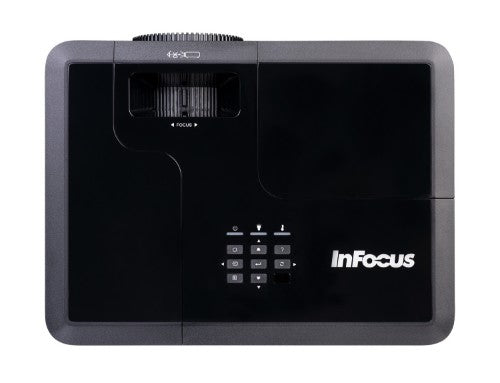

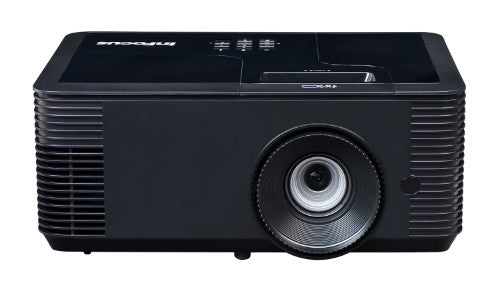

InFocus IN2136 WXGA data projector Standard throw projector 4500 ANSI lumens DLP WXGA (1280x800) 3D Black
Part number:
IN2136
$714.52
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- WXGA (1280 x 800) native resolution
- 4500 lumens and 28,500:1 contrast ratio for depth of image and life-like colors
- TechStation lets you customize your projector with the devices you already use
- Powered HDMI for mobile charging and device power
- Long life lamp of up to 15,000 hours
- 10-watt speaker and unique design for powerful sound
- Class-leading, whisper-quiet design
- Supports all HDMI 1.4a 3D formats
Description
InFocus IN2136 ProjectorSuperior lens performance, brighter-than-ever images, comprehensive networking capabilities, and room-filling internal audio -- all in a projector designed to work seamlessly with the devices you’re already using.
Customize your projector using TechStation
With an HDMI port and multiple ways to connect your devices, the TechStation superpowers your projector and enables more effective learning by working seamlessly with the tools you already use. After connecting your device, close up the TechStation’s lid to create a streamlined, all-in-one solution for streaming audio and video.
IN2130 Series projectors work with:
- Google ChromeCast Ultra
- Intel Computer Stick
- Asus Chromebit
- Amazon Fire TV Stick
- Android stick
- And more HDMI-supported devices to enable casting, streaming, and wireless
Exceptional Sound Quality
IN2130 Series projectors were designed to provide better-than-ever sound quality through a 10W speaker. Whisper-quiet operating technology means you’ll never have to compete against your projector to be heard during meetings or presentations.
Brighter, Sharper Images in Any Light
With 4,500 lumens and an amazing 28,500:1 contrast ratio, the IN2136 projects sharper, clearer images no matter the lighting in your office or conference room. Plus BrilliantColor™ DLP imaging technology ensures images shine with over 1 billion colors that ensure life-like color accuracy and eye-catching presentations.
Superior Lens Performance
The IN2136 projector offers high quality optics with 1.3x zoom ration, clear focus, and full HD resolution. The projector delivers a longer throw so you have more flexibility on where to mount.
More Ways to Connect and Control
InFocus ProjectorNet 4.1 software lets you remotely manage and support your projector from a single computer via your existing network. Or quickly connect the IN2136 projector to your internal network for easy remote management. You can also simply sync with Crestron Roomview or AMX Device Discovery.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colors |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Contrast ratio (typical) | 28500:1 |
| Projector brightness (economic mode) | 3360 ANSI lumens |
| Vertical synchronization (min) | 56 kHz |
| Vertical synchronization (max) | 120 kHz |
| Uniformity | 80% |
| Matrix type | DMD |
| Keystone correction, horizontal | -40 - 40° |
| Horizontal synchronization (min) | 31.5 kHz |
| Horizontal synchronization (max) | 97.6 kHz |
| Projection technology | DLP |
| Projector brightness | 4500 ANSI lumens |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Lamp type | UHP |
| Lamp power (economic mode) | 170 W |
| Lamp power | 245 W |
| Service life of light source (economic mode) | 10000 h |
| Lens system | |
| Zoom ratio | 1.3:1 |
| Focus | Manual |
| Throw ratio | 1.54 - 1.18:1 |
| Offset | 15% |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 720p, 1080i, 1080p |
| Supported graphics resolutions | 800 x 600 (SVGA), 854 x 480 (WVGA), 1024 x 600, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Adjustable colour temperature | Yes |

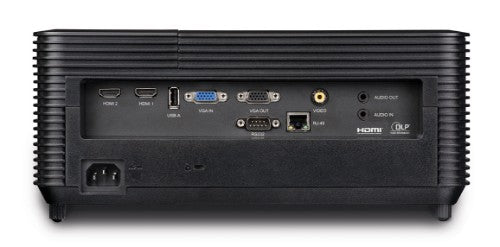

| Ports & interfaces | |
| Remote (IR) output | 1 |
| Mobile High-Definition Link (MHL) | No |
| HDMI connector type | Full-size |
| HDBaseT port | No |
| PC in (D-Sub) | Yes |
| DC-in jack | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Microphone in | No |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4a |
| DVI port | No |
| AUX in | No |
| AC (power) in | Yes |
| S/PDIF out port | No |
| Common interface Plus (CI+) | No |
| Audio Return Channel (ARC) | No |
| Consumer Electronics Control (CEC) support | No |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth | No |
| Bluetooth Low Energy (BLE) | No |
| Miracast | No |
| Web browser | No |
| Features | |
| Sync-on-green (SOG) | No |
| Separate H/V sync | Yes |
| Composite sync | No |
| Password protection | Yes |
| Electronic Programme Guide (EPG) | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise reduction | No |
| Noise level | 21 dB |
| Certification | UL, c-UL, FCC, CE, CCC+CECP, KCC, NOM, PCT/CU/EAC, PSB, SABS, CB, Nemco/GS, KC |
| Air filter | No |
| Trumotion technology | No |
| HID support | No |
| Teletext function | No |
| Hybrid Broadcast Broadband TV (HbbTV) | No |
| Hotel mode | No |
| High Dynamic Range (HDR) supported | No |
| 4K Ultra HD upscaling | No |
| Eye protection | No |
| Projection modes | Ceiling, Front, Rear |
| Screen mirroring | No |
| Sleep timer | Yes |
| Number of OSD languages | 27 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| Video formats supported | 3GP, AVI, MOV, MP4, MPEG, MPG, RM, RMVB |
| Image formats supported | BMP, JPEG XR, JPG, PNG |
| Audio formats supported | AAC, MP3, WAV, WMA |
| TV tuner integrated | No |
| RMS rated power | 10 W |
| Logical Channel Number (LCN) | No |
| Equalizer | No |
| Built-in microphone | No |
| Design | |
| Market positioning | Home cinema |
| Product type | Standard throw projector |
| Housing material | Plastic |
| Cable lock slot type | Kensington |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Placement | Desktop, Ceiling, Tripod |
| Display | |
| Built-in display | No |
| Power | |
| Power consumption (network standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 330 W |
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (standby) | 0.5 W |
| Auto power off | Yes |
| Power consumption (economy mode) | 220 W |
| Processor | |
| Built-in processor | No |
| Supplier features | |
| Battery type | AA |
| Recommended gender | Any gender |
| Assembly required | No |
| Batteries required | Yes |
| Invoice unit | Yes |
| Orderable unit | Yes |
| Manual languages (ISO 639 format) | Multi |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Weight & dimensions | |
| Package width | 15.7" (398.8 mm) |
| Package depth | 13.3" (337.8 mm) |
| Package height | 7.7" (195.6 mm) |
| Weight | 7.05 lbs (3.2 kg) |
| Width | 12.3" (312.4 mm) |
| Depth | 9.3" (236.2 mm) |
| Height | 4.9" (124.5 mm) |
| Package weight | 9.92 lbs (4.5 kg) |
| Packaging content | |
| 3D glasses included | No |
| Tripod included | No |
| Remote control included | Yes |
| Battery type | AA |
| Remote control type | IR |
| Mounting brackets included | No |
| Manual | Yes |
| Carrying case | No |
| Cables included | AC, HDMI, IR |
| Batteries included | No |
| AC adapter included | No |
| Technical details | |
| Sustainability compliance | Yes |
| Other features | |
| RS-232 ports | 1 |
