Ethernet - 4 x RS232, 700g, Black
Description Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 230,400 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Brainboxes
Brainboxes ES-701 interface cards/adapter Serial
Part number:
ES-701
Sale price
$416.44
Regular price
$481.89
Save
$65.45
14%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
4 Port RS232 Ethernet to Serial AdapterDescription Ethernet to Serial device server providing access to four RS232 serial port. Data transfer rates up to 230,400 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Output interface | Serial |

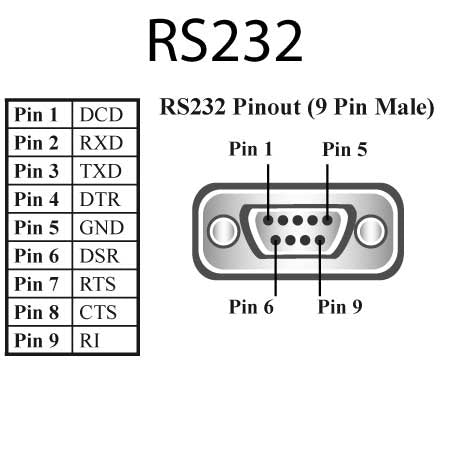

| Serial interface type | RS-232 |
| Serial ports quantity | 4 |
| Technical details | |
| FIFO (First In, First Out) | 2048 B |
| Compliance certificates | RoHS |
| Performance | |
| FIFO (First In, First Out) | 2048 B |
| Flow control support | Yes |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | EMC CE, WEEE, TAA, AEO C-TPAT |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | No |
| Product colour | Black |
| Certification | EMC CE, WEEE, TAA, AEO C-TPAT |
| Features | |
| FIFO (First In, First Out) | 2048 B |
| Flow control support | Yes |
| Harmonized System (HS) code | 84733020 |
| Power | |
| Power consumption (typical) | 1.35 W |
| System requirements | |
| Windows operating systems supported | Yes |

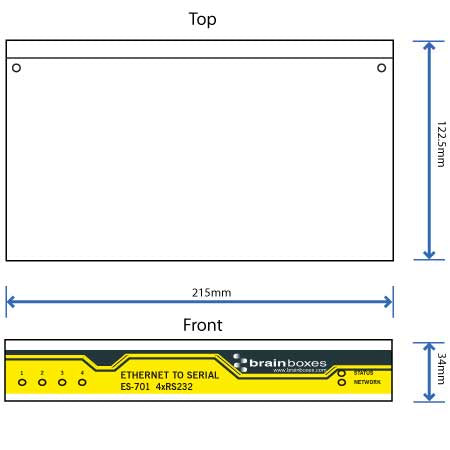

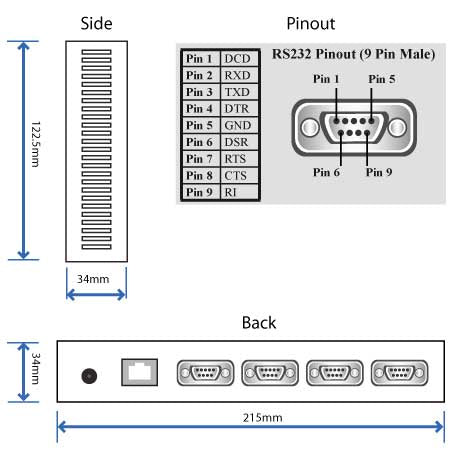

| Weight & dimensions | |
| Width | 4.84" (123 mm) |
| Depth | 8.46" (215 mm) |
| Height | 1.34" (34 mm) |
| Weight | 24.7 oz (700 g) |
| Package width | 9.45" (240 mm) |
| Package depth | 10.2" (260 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 2.31 lbs (1.05 kg) |
| Packaging data | |
| Package width | 9.45" (240 mm) |
| Package depth | 10.2" (260 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 2.31 lbs (1.05 kg) |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Connectivity technology | Wired |
| Mac compatibility | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Flow control support | Yes |
| Packaging content | |
| Quick installation guide | Yes |
