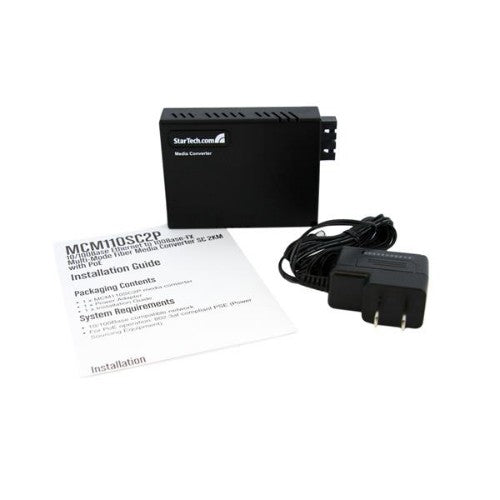

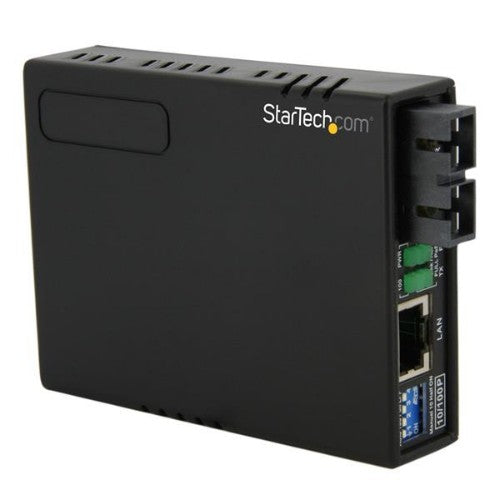

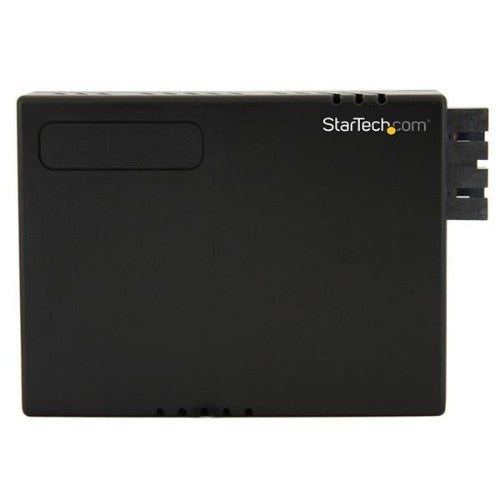

StarTech.com 10/100 Multi Mode Fiber to Ethernet Media Converter SC 2km with PoE
The MCM110SC2P 10/100 Multi Mode Fiber to Ethernet Media Converter supports a maximum fiber cable distance of 2km, ensuring a highly reliable signal for ideal network connectivity and performance.
Featuring Power over Ethernet support, the converter draws power from a PoE network, delivering the freedom to use the converter in environments and scenarios where additional standard power options are unavailable.
Rather than paying for expensive installations of power wire (at drop points that may have them), running PoE requires only standard network cable (e.g. Cat5e cable), eliminating added cost and hassle.
Backed by a StarTech.com 2-year warranty and free lifetime technical support, the 10/100Base to 100Base-FX Multimode Fiber Ethernet Media converter features a durable design to help ensure reliability and long-lasting performance.
The StarTech.com Advantage
StarTech.com
StarTech.com MCM110SC2P network media converter 100 Mbit/s 1310 nm Multi-mode
Part number:
MCM110SC2P
Sale price
$99.82
Regular price
$113.99
Save
$14.17
12%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber - with PoEThe MCM110SC2P 10/100 Multi Mode Fiber to Ethernet Media Converter supports a maximum fiber cable distance of 2km, ensuring a highly reliable signal for ideal network connectivity and performance.
Featuring Power over Ethernet support, the converter draws power from a PoE network, delivering the freedom to use the converter in environments and scenarios where additional standard power options are unavailable.
Rather than paying for expensive installations of power wire (at drop points that may have them), running PoE requires only standard network cable (e.g. Cat5e cable), eliminating added cost and hassle.
Backed by a StarTech.com 2-year warranty and free lifetime technical support, the 10/100Base to 100Base-FX Multimode Fiber Ethernet Media converter features a durable design to help ensure reliability and long-lasting performance.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX |
| Converter input interface | 100BASE-FX |
| Networking standards | IEEE 802.1Q, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
| Features | |
| Housing material | Plastic |

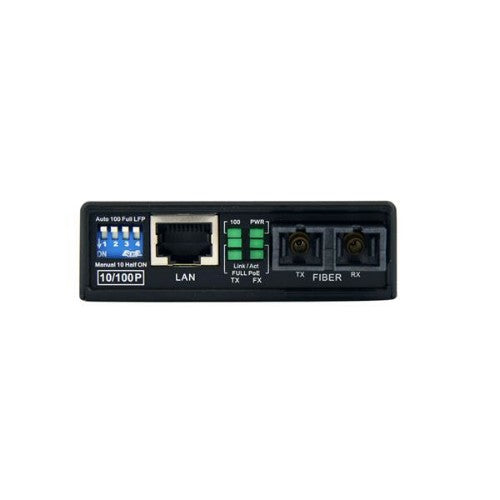

| LED indicators | Activity, Link, PoE, Power |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |

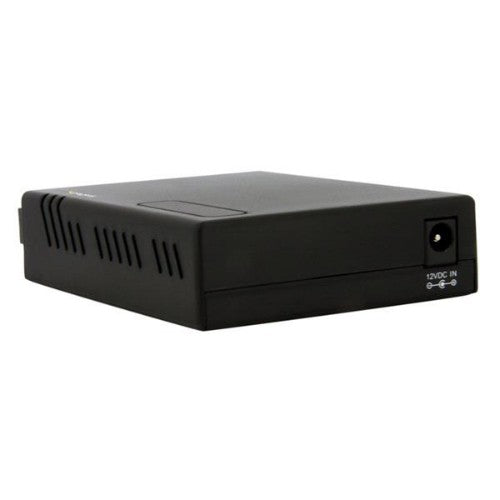

| DC-in jack | Yes |
| Power | |
| Power plug type | Type M |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 115 V |
| Output voltage | 12 V |
| Output current | 0.4 A |
| Power consumption (typical) | 4.8 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 3.74" (95 mm) |
| Weight | 3.17 oz (90 g) |
| Height | 0.787" (20 mm) |
| Package depth | 6.77" (172 mm) |
| Package width | 2.36" (60 mm) |
| Package height | 5.63" (143 mm) |
| Package weight | 10.6 oz (300 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Packaging data | |
| Package depth | 6.77" (172 mm) |
| Package width | 2.36" (60 mm) |
| Package height | 5.63" (143 mm) |
| Package weight | 10.6 oz (300 g) |
| Technical details | |
| Housing material | Plastic |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Design | |
| Housing material | Plastic |
| LED indicators | Activity, Link, PoE, Power |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
