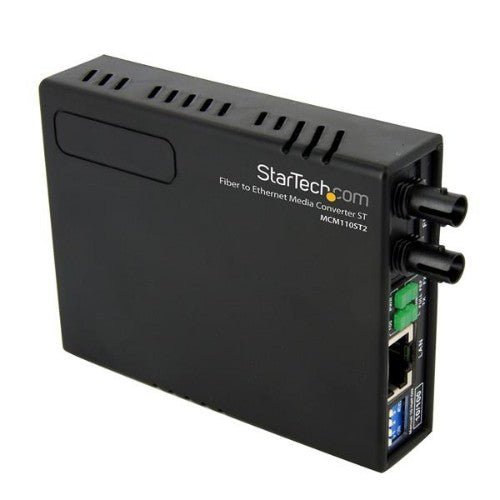

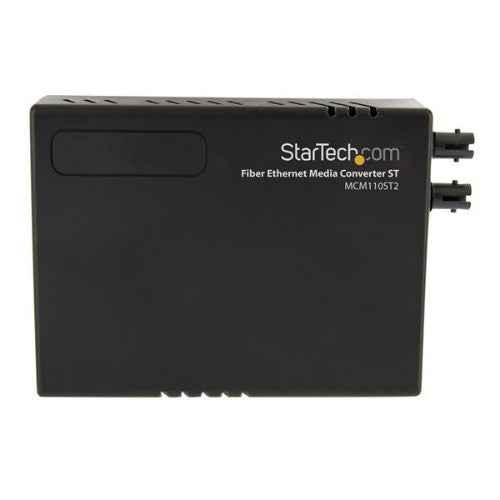

StarTech.com 10/100 Mbps Ethernet to Fiber Optic Media Converter - ST Multimode - 1310nm - 2km - Full/Half Duplex (MCM110ST2)
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

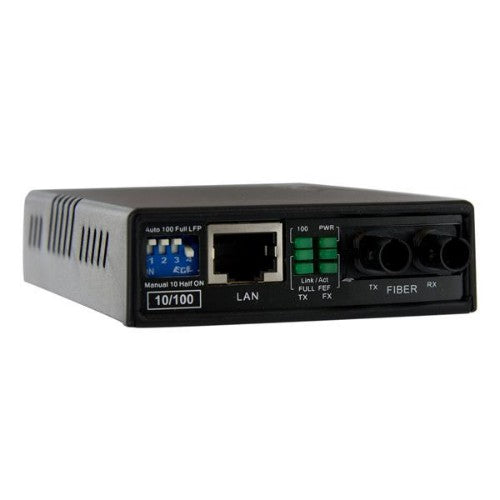

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
StarTech.com
StarTech.com MCM110ST2 network media converter 100 Mbit/s 1310 nm
Part number:
MCM110ST2
Sale price
$70.17
Regular price
$77.99
Save
$7.82
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiberThe MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Specifications
| Network | |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100BASE-FX, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full, Half |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | ST |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Sensitivity | -31 dBmW |
| Mean time between failures (MTBF) | 65000 h |
| Link budget | 11 dB |
| Features | |
| Housing material | Plastic |
| LED indicators | Yes |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | ST |

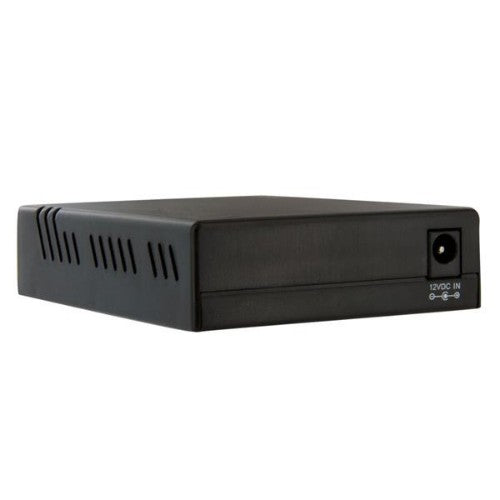

| Power | |
| Power plug type | Type M |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power consumption (typical) | 2.4 W |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 3.74" (95 mm) |
| Weight | 2.89 oz (82 g) |
| Height | 0.787" (20 mm) |
| Package depth | 6.89" (175 mm) |
| Package width | 5.71" (145 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 9.63 oz (273 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |

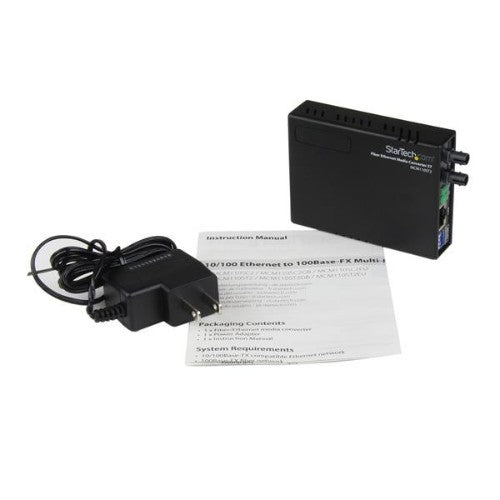

| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging data | |
| Package depth | 6.89" (175 mm) |
| Package width | 5.71" (145 mm) |
| Package height | 2.4" (61 mm) |
| Package weight | 9.63 oz (273 g) |
| Technical details | |
| Housing material | Plastic |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Sensitivity | -31 dBmW |
| Link budget | 11 dB |
| Internal | No |
| Data transfer rate | 100 Mbit/s |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Housing material | Plastic |
| LED indicators | Yes |
| Certification | CE, FCC, TAA, REACH |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Compliance certificates | RoHS |
| Other features | |
| Link budget | 11 dB |
