SmartRack 26U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW26US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Tripp Lite

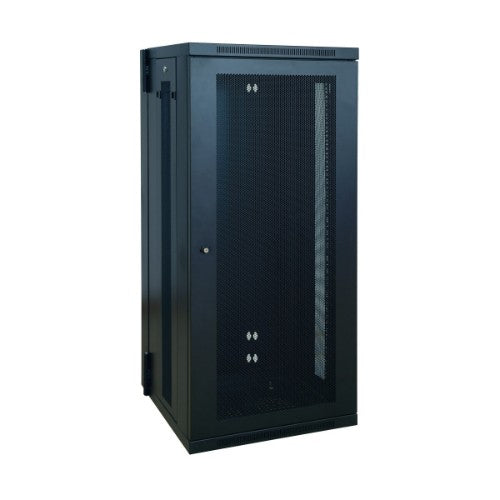

Tripp Lite SRW26US rack cabinet 26U Wall mounted rack Black
Part number:
SRW26US
Sale price
$1,095.43
Regular price
$2,109.20
Save
$1,013.77
48%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Maximum load capacity of 250 lbs (113.4 kgs)
- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 26U of 19 in. rack equipment up to 20.5 in. deep
Description
The SRW26US SmartRack® 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW26US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 55" (1397 mm) |
| Package width | 24" (609.6 mm) |
| Package height | 22" (558.8 mm) |
| Package weight | 142 lbs (64.4 kg) |
| Width | 23.6" (599.4 mm) |
| Depth | 21.6" (548.6 mm) |
| Height | 49.7" (1262.4 mm) |
| Weight | 125 lbs (56.7 kg) |
| Maximum weight capacity | 250 lbs (113.4 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Rack capacity | 26U |
| Type | Wall mounted rack |
| Maximum weight capacity | 250 lbs (113.4 kg) |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950 |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package depth | 55" (1397 mm) |
| Package width | 24" (609.6 mm) |
| Package height | 22" (558.8 mm) |
| Package weight | 142 lbs (64.4 kg) |
| Technical details | |
| Package width | 24" (609.6 mm) |
| Package height | 22" (558.8 mm) |
| Type | Wall mounted rack |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 26U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950 |
| Logistics data | |
| Master (outer) case width | 24" (609.6 mm) |
| Master (outer) case length | 55" (1397 mm) |
| Master (outer) case height | 22" (558.8 mm) |
| Master (outer) case gross weight | 142 lbs (64.4 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
