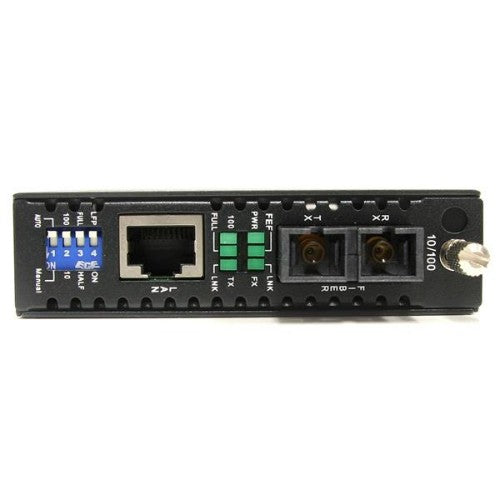

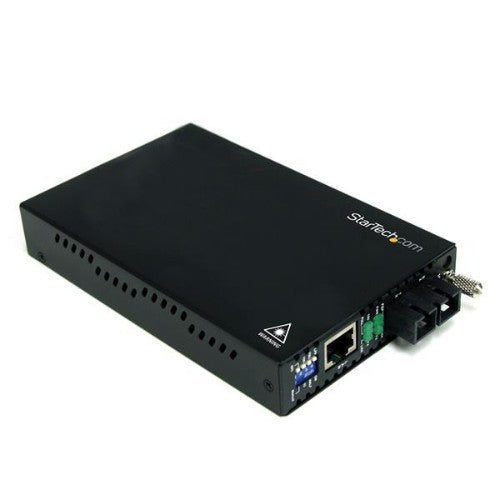

10/100 Mbps Single Mode Fiber Media Converter SC 30 km
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

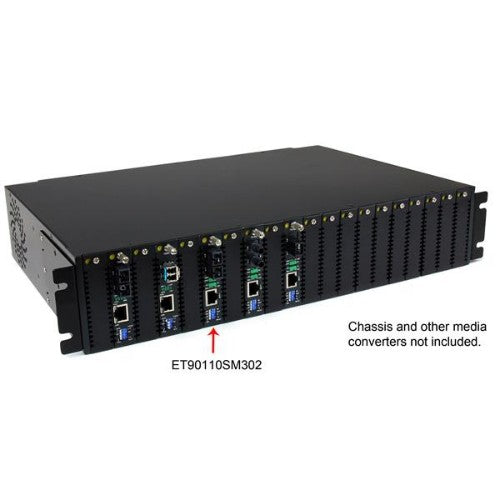

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
StarTech.com
StarTech.com ET90110SM302 network media converter 200 Mbit/s 1310 nm Single-mode Black
Part number:
ET90110SM302
Sale price
$179.76
Regular price
$187.99
Save
$8.23
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiberThe ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
| Network | |
|---|---|
| Converter input interface | 10Base-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1181102.4" (30000 m) |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Features | |
| Plug and Play | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

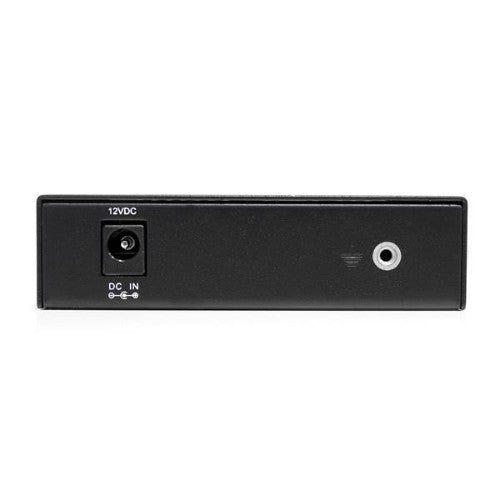

| DC-in jack | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Weight & dimensions | |
| Weight | 21.2 oz (600 g) |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
| Package depth | 5.39" (137 mm) |
| Package width | 8.11" (206 mm) |
| Package height | 3.5" (89 mm) |
| Package weight | 27 oz (766 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package depth | 5.39" (137 mm) |
| Package width | 8.11" (206 mm) |
| Package height | 3.5" (89 mm) |
| Package weight | 27 oz (766 g) |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1181102.4" (30000 m) |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
