10Gb/40Gb/100Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable (LC/LC), Aqua, 2M (6.6 ft.)
40/100gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Tripp Lite

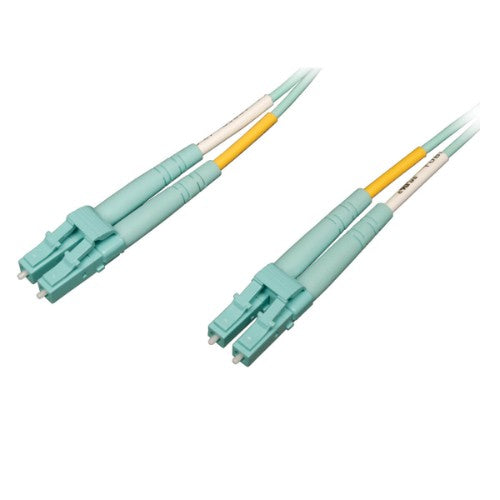

Tripp Lite N820-02M-OM4 InfiniBand/fibre optic cable 78.7" (2 m) LC Blue
Part number:
N820-02M-OM4
Sale price
$20.08
Regular price
$30.66
Save
$10.58
35%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Designed for 40/100-Gig Ethernet applications...OM4 Rated
- Backward compatible with existing 50/125 fiber
- Max 40/100Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Description
2 Meter ( 6ft ) LC/LC, OM4 Rated40/100gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Specifications
| Features | |
|---|---|
| Fibre optic type | OM4 |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 78.7" (2 m) |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 850 nm |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Certification | TIA LOMMF |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Certification | TIA LOMMF |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 0.705 oz (20 g) |
| Technical details | |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 78.7" (2 m) |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Master (outer) case GTIN (EAN/UPC) | 10037332165241 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Weight & dimensions | |
| Cable length | 78.7" (2 m) |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 0.705 oz (20 g) |
| Logistics data | |
| Master (outer) case width | 7.1" (180.3 mm) |
| Master (outer) case length | 7.1" (180.3 mm) |
| Master (outer) case height | 4" (101.6 mm) |
| Master (outer) case gross weight | 10.6 oz (300 g) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332165241 |
