Intel I210T1, Internal, Wired, PCI Express, Ethernet
Intel

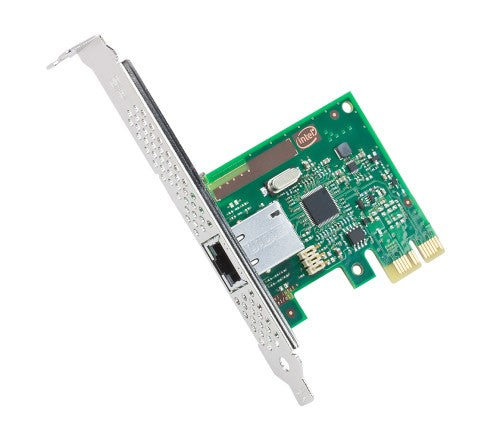

Intel I210T1 network card Internal Ethernet
Part number:
I210T1
$50.69
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel I210T1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: EthernetSpecifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Technical details | |
| Compatible products | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Interface type | PCIe v2.1 (2.5 GT/s) |
| Thermal power | 1 W |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| PCI-SIG* SR-IOV Capable | No |
| On-chip QoS and Traffic Management | No |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | No |
| Intel Flexible Port Partitioning | No |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | No |
| Fiber Channel over Ethernet | No |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Thermal Design Power (TDP) | 1 W |
| Product type | Network Interface Card |
| Number of QPI links | Single |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Status | Launched |
| Product name | Intel Ethernet Server Adapter I210-T1 |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'13 |
| Born on date | Q1'13 |
| Last change | 63903513 |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Maximum operating distance | 3937" (100 m) |
| LAN controller | Intel I210 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Design | |
| Compatible products | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Internal | Yes |
| Conflict-Free | Yes |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
| Weight & dimensions | |
| Width | 2.56" (65 mm) |
| Depth | 0.787" (20 mm) |
| Height | 2.17" (55 mm) |
| Performance | |
| Conflict-Free | Yes |
| Ethernet adapter ARK ID | 68668 |
| Compatible products | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Thermal power | 1 W |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| PCI-SIG* SR-IOV Capable | No |
| On-chip QoS and Traffic Management | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | No |
| Intel Flexible Port Partitioning | No |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | No |
| Fiber Channel over Ethernet | No |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Conflict-Free | Yes |
| Thermal Design Power (TDP) | 1 W |
| Product type | Network Interface Card |
| Number of QPI links | Single |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet adapter ARK ID | 68668 |
| Interface type | PCIe v2.1 (2.5 GT/s) |
| Cable type | RJ45 Category 5, up to 100 m |
| Thermal power | 1 W |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| PCI-SIG* SR-IOV Capable | No |
| On-chip QoS and Traffic Management | No |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | No |
| Intel Flexible Port Partitioning | No |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | No |
| Fiber Channel over Ethernet | No |
| Status | Launched |
| Product name | Intel Ethernet Server Adapter I210-T1 |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'13 |
| Born on date | Q1'13 |
| Last change | 63903513 |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel I210 |
| Cabling type | RJ45 Category 5, up to 100 m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
