Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Intellinet

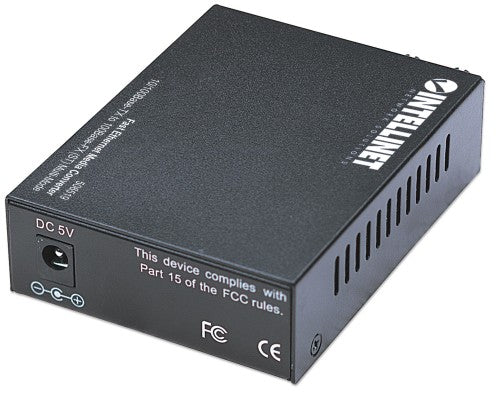

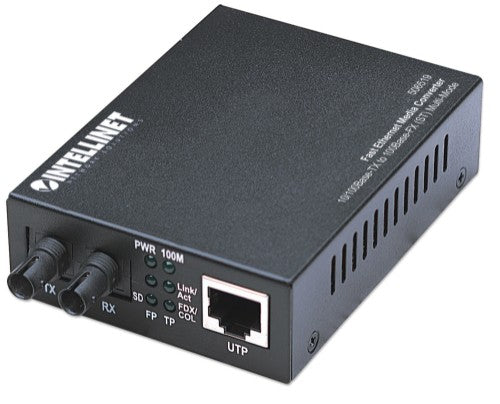

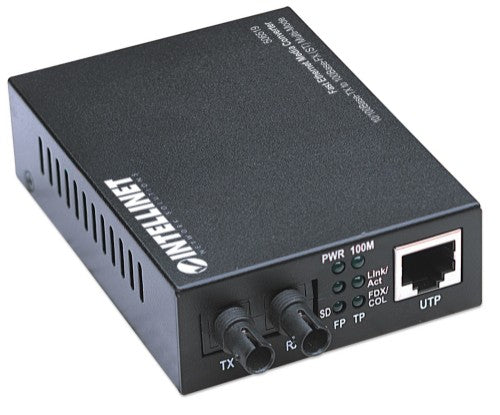

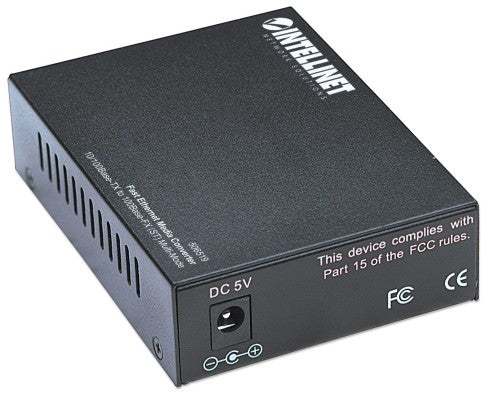

Intellinet 506519 network media converter 100 Mbit/s 1310 nm Multi-mode Black
Part number:
506519
Sale price
$53.78
Regular price
$66.99
Save
$13.21
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Data transfer rate: 100 Mbps
- One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft.
- RJ45 port with Auto MDI/MDI-X support and auto-negotiation
- One 100Base-FX multi-mode Fibre ST duplex port
- Fibre distance support: up to 2 km / 1.24 mi (62.5/125 or 50/125 µm cable)
- Wavelength: 1310 nm
- Flow control

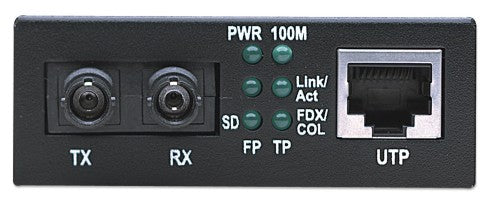

- Status LEDs for power and Link/TX for both ports

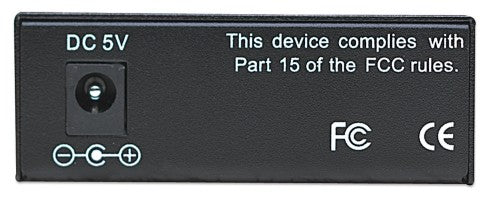

- External power adapter, 5 V DC
- Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
- Three-Year Warranty
Description
The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Specifications
| Network | |
|---|---|
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | ST |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Sensitivity | -30 dBmW |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Flow control support | Yes |
| Features | |
| Housing material | Metal |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 2.5 W |
| Input current | 1 A |
| Output voltage | 5 V |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 4.21" (107 mm) |
| Weight | 17.6 oz (500 g) |
| Height | 1.02" (26 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Sensitivity | -30 dBmW |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | LAN, Link, Power |
| Design | |
| Housing material | Metal |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Certification | FCC, CE |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
