StarTech.com .

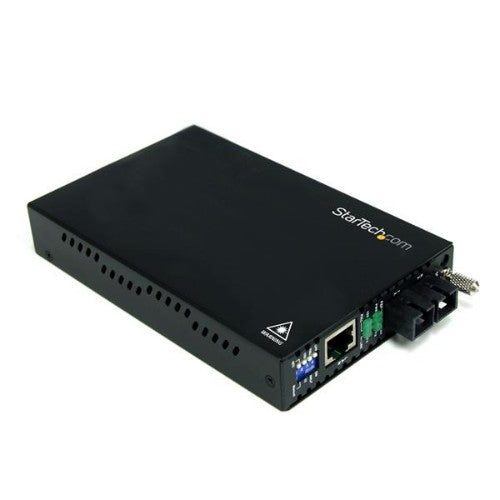

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

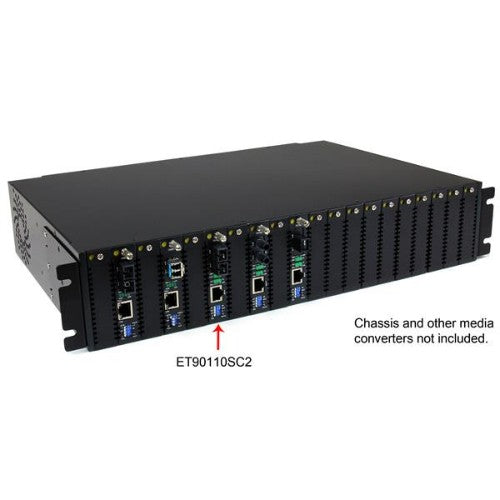

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
StarTech.com
StarTech.com ET90110SC2 network media converter 200 Mbit/s 1310 nm Multi-mode Black
Part number:
ET90110SC2
Sale price
$87.89
Regular price
$96.99
Save
$9.10
9%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiberThe ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Features | |
| Housing material | Steel |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power plug type | Type M |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Weight & dimensions | |
| Width | 3.43" (87 mm) |
| Depth | 6.02" (153 mm) |
| Weight | 21.2 oz (600 g) |
| Height | 0.945" (24 mm) |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
| Package depth | 9.17" (233 mm) |
| Package width | 7.48" (190 mm) |
| Package height | 3.03" (77 mm) |
| Package weight | 27.5 oz (779 g) |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging data | |
| Package depth | 9.17" (233 mm) |
| Package width | 7.48" (190 mm) |
| Package height | 3.03" (77 mm) |
| Package weight | 27.5 oz (779 g) |
| Technical details | |
| Housing material | Steel |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
