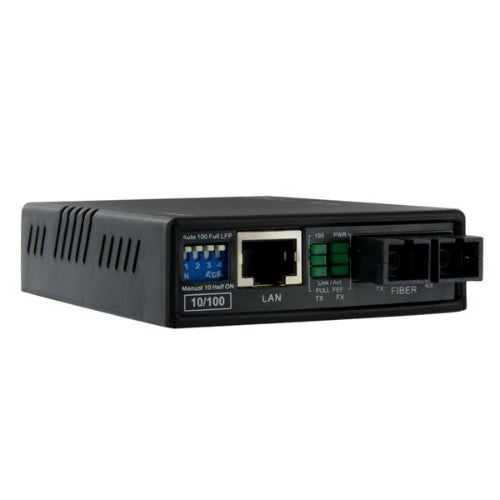

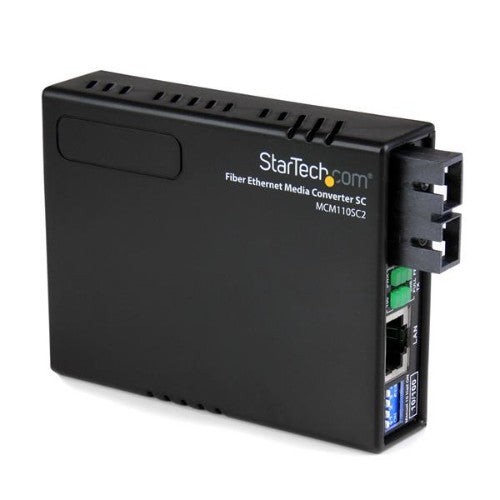

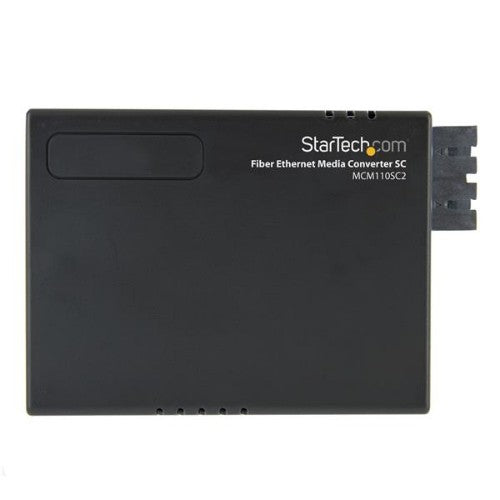

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
StarTech.com
StarTech.com MCM110SC2 network media converter 100 Mbit/s 1310 nm Multi-mode Black
Part number:
MCM110SC2
Sale price
$70.17
Regular price
$77.99
Save
$7.82
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Features | |
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

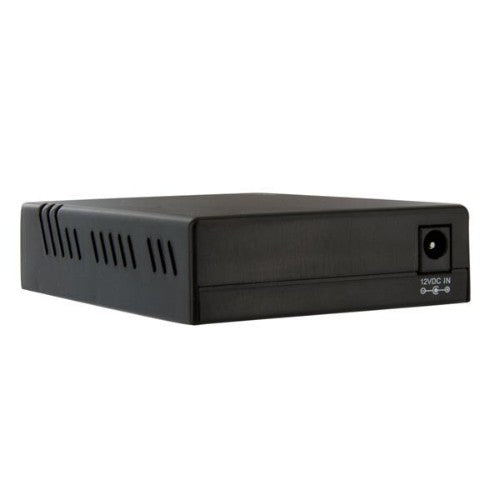

| DC-in jack | Yes |
| Power | |
| Power plug type | Type M |
| Power over Ethernet (PoE) | No |
| Input voltage | 115 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 3.74" (95 mm) |
| Weight | 3.19 oz (90.5 g) |
| Height | 0.787" (20 mm) |
| Package depth | 5.83" (148 mm) |
| Package width | 2.48" (63 mm) |
| Package height | 5.71" (145 mm) |
| Package weight | 14.1 oz (400 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |

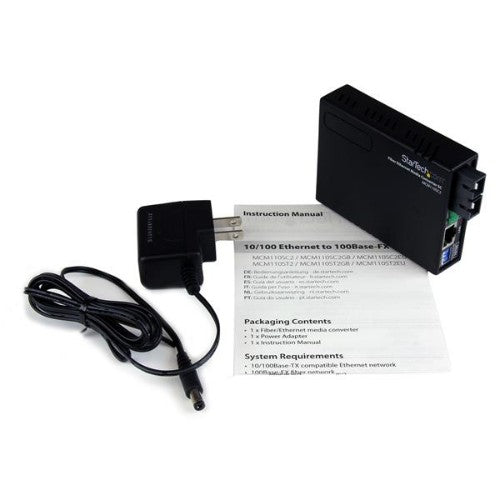

| AC adapter included | Yes |
| Manual | Yes |
| Packaging data | |
| Package depth | 5.83" (148 mm) |
| Package width | 2.48" (63 mm) |
| Package height | 5.71" (145 mm) |
| Package weight | 14.1 oz (400 g) |
| Technical details | |
| Housing material | Plastic |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
