10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

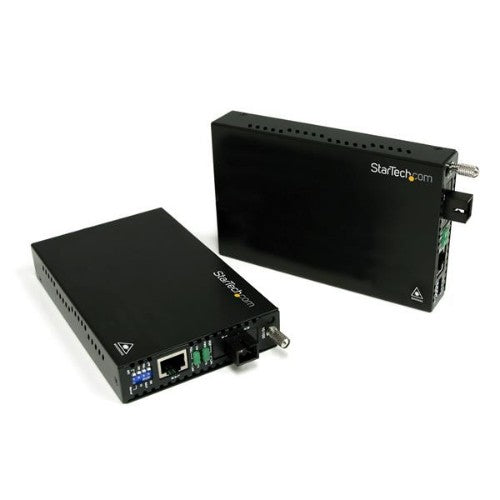

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

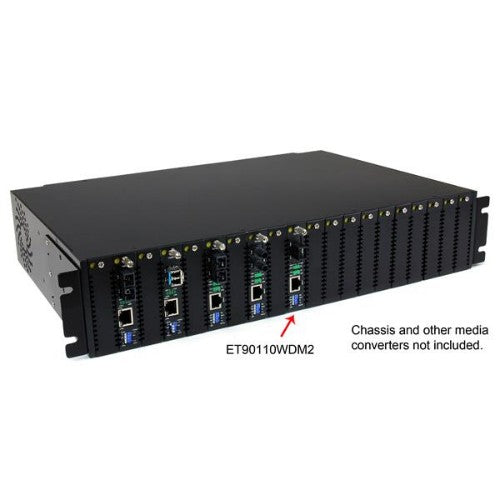

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
StarTech.com
StarTech.com ET90110WDM2 network media converter 200 Mbit/s 1310 nm Single-mode Black
Part number:
ET90110WDM2
Sale price
$139.60
Regular price
$148.99
Save
$9.39
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cableThe ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.
The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
| Network | |
|---|---|
| Converter input interface | 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Features | |
| Plug and Play | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Weight & dimensions | |
| Weight | 2.65 lbs (1.2 kg) |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
| Package depth | 11" (279 mm) |
| Package width | 8.31" (211 mm) |
| Package height | 3.98" (101 mm) |
| Package weight | 3 lbs (1.36 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package depth | 11" (279 mm) |
| Package width | 8.31" (211 mm) |
| Package height | 3.98" (101 mm) |
| Package weight | 3 lbs (1.36 kg) |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 787401.6" (20000 m) |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
| Dimensions (WxDxH) | 3.74 x 6.3 x 0.787" (95 x 160 x 20 mm) |
