AMD Ryzen V3C14, 16GB ECC DDR5-4800 SO-DIMM, PCIe 4.0 x1, 250W

Description

Speeds keep Ryzen and Ryzen!

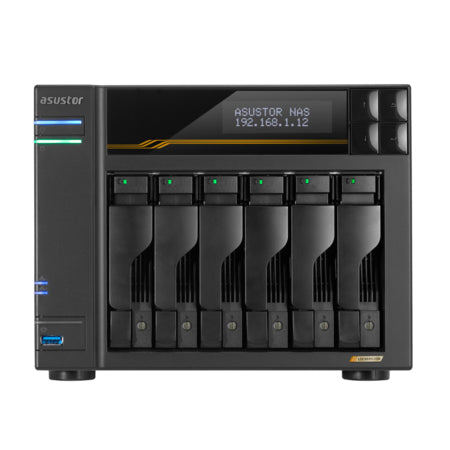

The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.

Ryzen Up to the Challenge!
AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.

Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

PCI Express 4.0 Brings Doubled Performance
The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.

USB4 is More Than Just Storage
The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.
When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

The Hottest NAS Ever is also the Coolest
With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Storage drive interface	M.2, Serial ATA
RAID support	Yes
Supported file systems	BTRFS, HFS+, NTFS, exFAT, ext4
RAID levels	0, 1, 5, 6, 10
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	4
Processor
Processor manufacturer	AMD
Processor boost frequency	3.8 GHz
Processor frequency	2.3 GHz
Processor family	AMD Ryzen
Processor model	V3C14
Processor cores	4
Memory
Internal memory type	DDR5
Internal memory	16 GB
Memory clock speed	4800 MHz
Maximum RAM supported	64 GB
Memory slots	2
Flash memory	8000 MB
Memory form factor	SO-DIMM
Network
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500,10000 Mbit/s
Wake-on-LAN ready	Yes
Supported network protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Jumbo frames support	Yes
iSCSI support	Yes
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Hard drive
RAID support	Yes
Supported file systems	BTRFS, HFS+, NTFS, exFAT, ext4
RAID levels	0, 1, 5, 6, 10
Design
Cooling type	Active
Fan diameter	4.72" (12 cm)
Built-in display	Yes
Display type	LCD
Product colour	Black
Number of fans	1 fan(s)
Chassis type	Desktop
Technical details
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Built-in display	Yes
Display type	LCD
Product colour	Black
Noise level	18.1 dB
Chassis type	Desktop
Number of fans	1 fan(s)
Performance
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Windows operating systems supported	Windows 10, Windows 11
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Web-based management	Yes
Operating system version	5.0 Onwards
Operating system installed	ADM
Noise level	18.1 dB
Access Control List (ACL)	Yes
Cooling
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Security
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10, Windows 11
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating system version	5.0 Onwards
Operating system installed	ADM
Management features
Web-based management	Yes
Power
Power supply location	External
Power supply unit (PSU) capacity	250 W
AC input voltage	100 - 240 V
Power consumption (typical)	45 W
Power consumption (sleep)	2.3 W
Weight & dimensions
Width	9.17" (233 mm)
Depth	9.06" (230 mm)
Height	7.3" (185.5 mm)
Weight	9.7 lbs (4.4 kg)
System requirements
Windows operating systems supported	Windows 10, Windows 11
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
