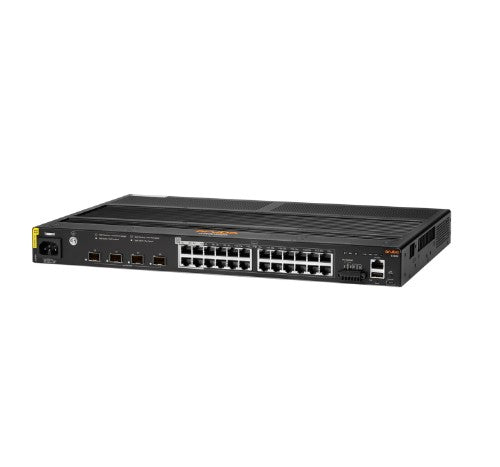

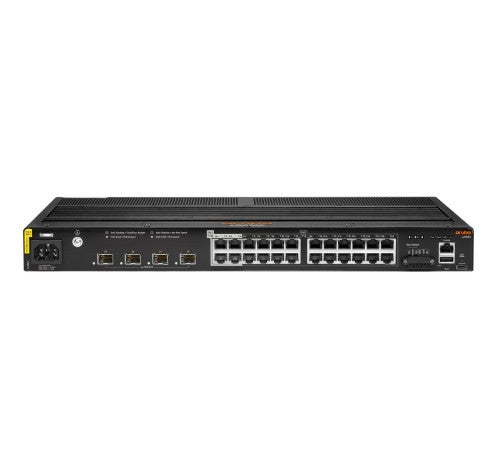

HPE Aruba Networking Aruba 4100i, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 4100i. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	12.38 MB
Stackable	No
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Technical details
Form factor	1U
Product colour	Black
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45/USB Type-C
Data transmission
Throughput	95 Mpps
Latency (1 Gbps)	1.585 µs
Latency (10 Gbps)	1.243 µs
Packet buffer memory	12.38 MB
MAC address table	8192 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	SSH, SSH-2
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	32000 MB
Design
Form factor	1U
Product colour	Black
Stackable	No
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 165354.3" (0 - 4200 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Weight & dimensions
Width	17.5" (444.5 mm)
Depth	12" (304.4 mm)
Height	1.73" (44 mm)
Weight	14.3 lbs (6.47 kg)
