8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
_x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
Intellinet

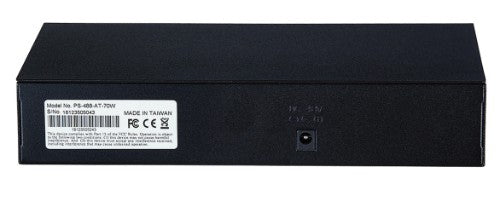

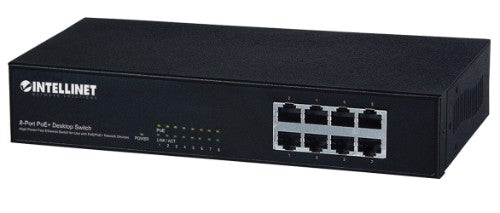

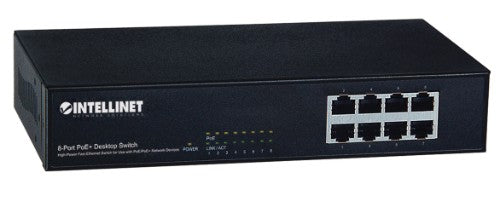

Intellinet 560764 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Part number:
560764
Sale price
$70.19
Regular price
$132.49
Save
$62.30
47%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides power and data connection for up to eight PoE network devices
- Save time and money by delivering data and power via existing network cables
- 10/100 auto-sensing ports automatically detect optimal network speeds
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- PoE power budget of 140 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- All RJ45 ports with Auto-MDIX (auto uplink) support
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports up to 2K MAC address entries
- 96 kBytes buffer memory
- Fanless design ideal for silent operation
- Desktop-size metal case
- Three-Year Warranty
Description
Save installation time and money with PoE. _x000D__x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 2048 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 0.1488 Mpps |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Certification | FCC Class A, CE |
| Power | |
| Power consumption (max) | 150 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 11" (280 mm) |
| Depth | 7.05" (179 mm) |
| Height | 1.73" (44 mm) |
| Weight | 3.31 lbs (1.5 kg) |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC Class A, CE |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
