DVI Dual Link Cable, Digital TMDS Monitor Cable (DVI-D M/M), 6 ft. (1.83 m)
Use in conjunction with DVI video cards that are specified as Dual Link. Both DVI connectors are molded and have integral strain relief for long life reliability.
Tripp Lite

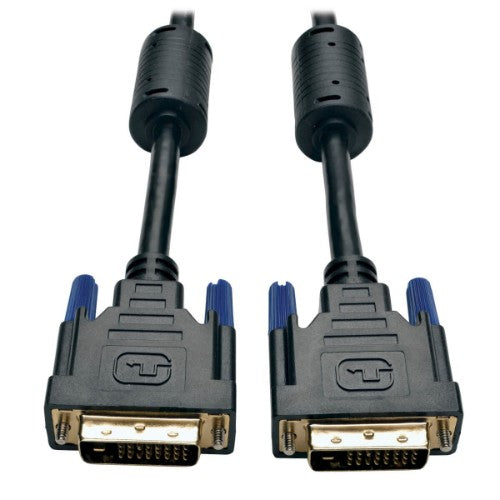

Tripp Lite P560-006 DVI cable 72" (1.83 m) DVI-D Black
Part number:
P560-006
Sale price
$8.95
Regular price
$23.58
Save
$14.63
62%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- For use with Dual or Single TMDS Link specified equipment
- Compatible with Flat Panel Displays, Digital CRT Displays and Projectors
- Provides bandwidth for resolutions up to 2560 x 1600
- High Speed Digital Transmission to 9.9Gbps
- Superior molded cables with foil/braid shielding for maximum EMI/RFI protection
Description
This DVI Dual Link TMDS cable delivers the high performance and high bandwidth needed for today's digital video displays. Gold-plated contacts ensure excellent conductivity, while double shielding (foil and braid) provides maximum EMI/RFI protection.Use in conjunction with DVI video cards that are specified as Dual Link. Both DVI connectors are molded and have integral strain relief for long life reliability.
Specifications
| Features | |
|---|---|
| Ferrite bead | Yes |
| Country of origin | China |
| Product colour | Black |
| Cable length | 72" (1.83 m) |
| Connector 1 | DVI-D |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Dual Link DVI | Yes |
| Data transfer rate | 9.9 Gbit/s |
| Maximum resolution | 2560 x 1600 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 9.52 oz (270 g) |
| Package width | 10" (254 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 8" (203.2 mm) |
| Package weight | 9.52 oz (270 g) |
| Packaging data | |
| Package width | 10" (254 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 8" (203.2 mm) |
| Package weight | 9.52 oz (270 g) |
| Technical details | |
| Ferrite bead | Yes |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332120714 |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Other features | |
| Width | 10" (254 mm) |
| Height | 8" (203.2 mm) |
| Depth | 0.5" (12.7 mm) |
| Logistics data | |
| Master (outer) case gross weight | 29.5 lbs (13.4 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 13.9" (353.1 mm) |
| Master (outer) case length | 14.1" (358.1 mm) |
| Master (outer) case height | 12.3" (312.4 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332120714 |
| Harmonized System (HS) code | 84733080 |
