10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC) - Aqua, 3M (10 ft.)
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Tripp Lite

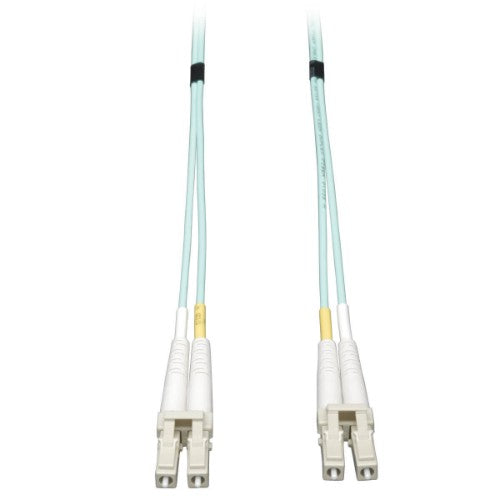

Tripp Lite N820-03M InfiniBand/fibre optic cable 118.1" (3 m) LC OFNR Blue, White, Yellow
Part number:
N820-03M
Sale price
$17.92
Regular price
$26.65
Save
$8.73
33%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Designed for 10-Gig Ethernet applications...OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Description
3 Meter ( 10ft ) LC/LC, OM3 Rated10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Specifications
| Features | |
|---|---|
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | OFNR |
| Cable length | 118.1" (3 m) |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.2 dB |
| Data transfer rate | 10 Gbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Wavelengths supported | 850 nm |
| Product colour | Blue, White, Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | OFNR |
| Cable length | 118.1" (3 m) |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.2 dB |
| Master (outer) case GTIN (EAN/UPC) | 10037332124866 |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 118.1" (3 m) |
| Package width | 7" (177.8 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 9" (228.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Logistics data | |
| Master (outer) case width | 5.9" (149.9 mm) |
| Master (outer) case length | 4" (101.6 mm) |
| Master (outer) case height | 7.5" (190.5 mm) |
| Master (outer) case gross weight | 13.8 oz (390 g) |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case GTIN (EAN/UPC) | 10037332124866 |
