APC SMT1500RMJ2U, 1.5 kVA, 1200 W, 100 V, 100 V, 50/60 Hz, 100 V

Description

APC SMT1500RMJ2U. Output power capacity: 1.5 kVA, Output power: 1200 W, Input operation voltage (min): 100 V. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Rackmount, Product color: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: REACH, RoHS, UL 1778, VCCI A

Specifications

Power
Output power	1200 W
Input operation voltage (min)	100 V
Input operation voltage (max)	100 V
Output operation voltage (min)	100 V
Output operation voltage (max)	100 V
Surge energy rating	540 J
Maximum current	12 A
Efficiency	97.6%
Output voltage Total Harmonic Distortion (THD)	7%
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	96.1" (2.44 m)

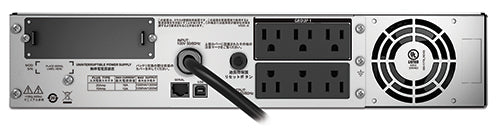

AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Battery
Battery type	APCRBC133
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Performance
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	46 dB
Audible alarm(s)	Yes
Features
Output power	1200 W
Input operation voltage (min)	100 V
Input operation voltage (max)	100 V
Output operation voltage (min)	100 V
Output operation voltage (max)	100 V
Surge energy rating	540 J
Maximum current	12 A
Efficiency	97.6%
EMI/RFI noise filtering	Yes
Surge protection	Yes
Output voltage Total Harmonic Distortion (THD)	7%
Noise level	46 dB
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Input frequency	50/60 Hz
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Cooling type	Active
Certification	REACH, RoHS, UL 1778, VCCI A
Cable length	96.1" (2.44 m)
Built-in fan	Yes

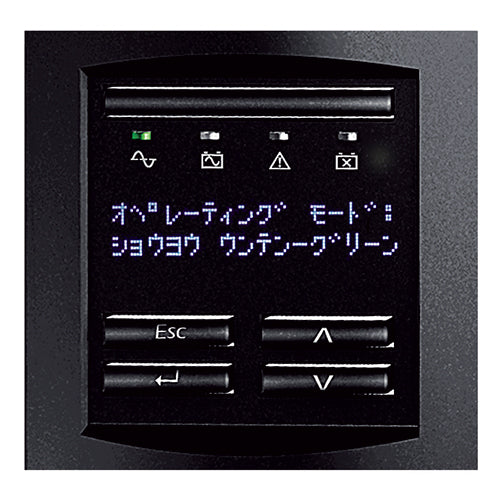

Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Compliance certificates	RoHS
Packaging data
Package dimensions (WxDxH)	23.4 x 23.7 x 9.88" (594 x 603 x 251 mm)
Package weight	72.8 lbs (33 kg)
Certificates
Certification	REACH, RoHS, UL 1778, VCCI A
Compliance certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Weight	61.3 lbs (27.8 kg)
Width	17" (432 mm)
Package weight	72.8 lbs (33 kg)
Height	3.39" (86 mm)
Depth	18.4" (468 mm)
Other features
Battery type	APCRBC133
Package dimensions (WxDxH)	23.4 x 23.7 x 9.88" (594 x 603 x 251 mm)
