45U SmartRack 2-Post Open Frame Rack, 800 lbs (362.9 kgs) Capacity - Organize and Secure Network Rack Equipment
Tripp Lite

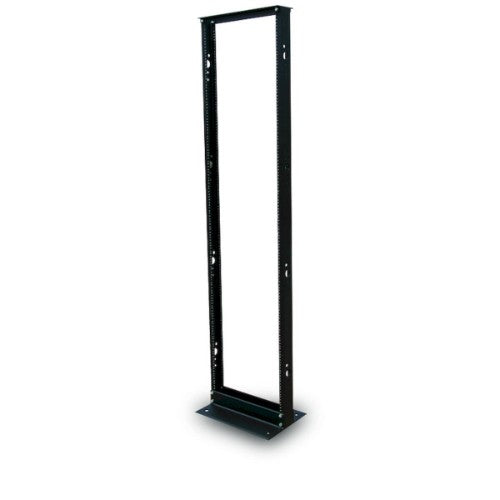

Tripp Lite SR2POST rack cabinet 45U Freestanding rack Black
Part number:
SR2POST
Sale price
$255.63
Regular price
$480.78
Save
$225.15
47%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD

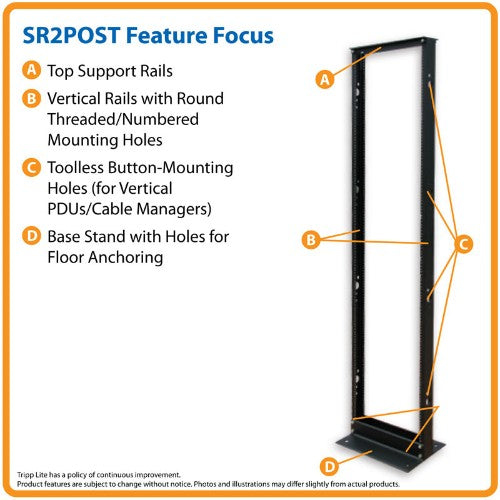

Key Features
- 45U 2-post open frame rack
- Black aluminum with 12-24 threaded and numbered mounting holes
- Toolless button keyhole mounting slots accept PDUs or cable managers
Description
SR2POST 2-Post SmartRack Open Frame Rack is an economical way to accommodate 45U of rack space for 19-inch rack-mount applications where space is at a premium. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment. The black, textured power coat finish makes it resistant to scratching while giving it a classic, attractive appearance. The SR2POST is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required. The SR2POST 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS.Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 88" (2235.2 mm) |
| Package width | 6.3" (160 mm) |
| Package height | 4.9" (124.5 mm) |
| Package weight | 33.1 lbs (15 kg) |
| Width | 20.3" (515.6 mm) |
| Depth | 13.5" (342.9 mm) |
| Height | 84" (2133.9 mm) |
| Weight | 29.1 lbs (13.2 kg) |
| Maximum weight capacity | 800.1 lbs (362.9 kg) |
| Features | |
| Rack capacity | 45U |
| Type | Freestanding rack |
| Maximum weight capacity | 800.1 lbs (362.9 kg) |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, RoHS |
| Packaging data | |
| Package depth | 88" (2235.2 mm) |
| Package width | 6.3" (160 mm) |
| Package height | 4.9" (124.5 mm) |
| Package weight | 33.1 lbs (15 kg) |
| Technical details | |
| Package width | 6.3" (160 mm) |
| Package height | 4.9" (124.5 mm) |
| Type | Freestanding rack |
| Master (outer) case GTIN (EAN/UPC) | 10037332127560 |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 45U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-D, IEC 60297-3-100, RoHS |
| Logistics data | |
| Master (outer) case width | 19.6" (497.8 mm) |
| Master (outer) case length | 89" (2260.6 mm) |
| Master (outer) case height | 18.9" (480.1 mm) |
| Master (outer) case gross weight | 233.9 lbs (106.1 kg) |
| Products per master (outer) case | 9 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
