8-Port 10/100 Mbps GREENnet Switch
Trendnet

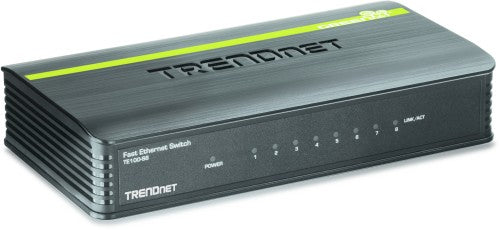

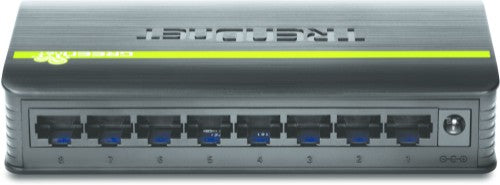

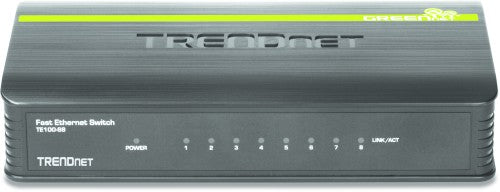

Trendnet 8-Port 10/100Mbps Switch Unmanaged
Part number:
TE100-S8
Sale price
$16.97
Regular price
$17.99
Save
$1.02
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Plug and play out of the box
- 8 x 10/100 Mbps Ethernet ports
- Up to 40% GREENnet energy savings*
- 1.6 Gbps switching capacity
- NDAA compliant
Description
TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
| I/O ports | 8 x 10/100Mbps Auto-MDIX RJ-45 |
| Network | |
| Full duplex | Yes |
| Flow control support | Yes |
| Data transmission | |
| Supported data transfer rates | 10/20Mbps, 100/200Mbps |
| Switching capacity | 1.6 Gbit/s |
| Maximum data transfer rate | 0.2 Gbit/s |
| Design | |
| Rack mounting | No |
| Certification | CE, FCC |
| Performance | |
| Buffer size | 512 KB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.8 W |
| Power source | 5V DC / 7.5V DC 1A |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Dimensions (WxDxH) | 6.06 x 4.33 x 1.3" (154 x 110 x 33 mm) |
| Connectivity technology | Wired |
| I/O ports | 8 x 10/100Mbps Auto-MDIX RJ-45 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 6.06" (154 mm) |
| Depth | 4.33" (110 mm) |
| Height | 1.3" (33 mm) |
| Weight | 7.94 oz (225 g) |
| Packaging data | |
| AC adapter included | Yes |
| Technical details | |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC |
| Packaging content | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
