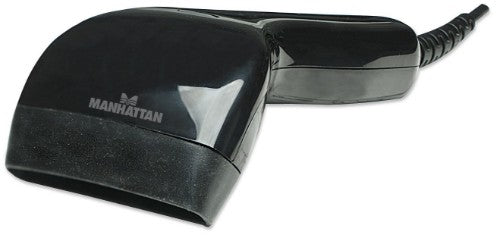

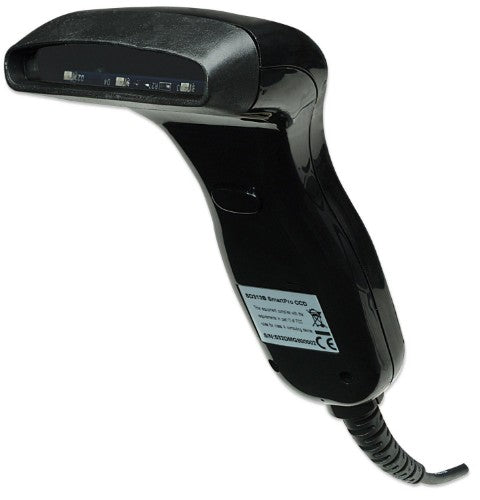

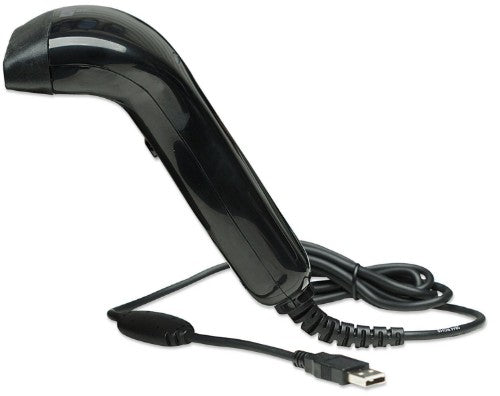

Contact CCD Handheld Barcode Scanner, USB, 80mm Scan Width, Cable 152cm, Max Ambient Light: 3,000 lux (sunlight), Black, Three Year Warranty
Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 120 scans per second and an accurate read range of up to 20 mm (0.78 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Manhattan
Manhattan 401517 barcode reader Handheld bar code reader 1D CCD Black
Part number:
401517
Sale price
$48.11
Regular price
$56.99
Save
$8.88
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Helps speed data entry, reduce errors and improve efficiency – ideal for retail transactions and automated processes
- Keyboard Wedge Decoder displays data as if directly entered from keyboard
- Wide scan field provides quick, accurate reads with up to 120 scans per second
- Detects many popular symbologies including UPC, EAN and GS1 DataBar
- Switchable interface integrates with most PCs
- Easy to install and use without software or special training
- Three-Year Warranty
Description
Improve speed, accuracy and productivity._x000D_Manhattan CCD Contact Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charge-coupled device) scan engine features no moving parts for years of reliable service reading popular barcodes including UPC, EAN and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application where it appears as if it was manually typed or directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates with most PCs without an external power supply. With a scan rate of 120 scans per second and an accurate read range of up to 20 mm (0.78 in.), this model offers a practical daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.
Specifications
| Scanning | |
|---|---|
| Scanner resolution | 0.00394" (0.1 mm) |
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 120 reads/s |
| Maximum scan width | 3.15" (8 cm) |
| Light levels (direct sunlight) | 0 - 3000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 60" (1.52 m) |
| Standard interfaces | USB |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC, CE |
| Light levels (direct sunlight) | 0 - 3000 lx |
| Design | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC, CE |
| Power | |
| Power consumption | 124 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 3.54" (90 mm) |
| Depth | 6.83" (173.5 mm) |
| Height | 2.21" (56.2 mm) |
| Weight | 13.8 oz (390 g) |
| Technical details | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Rubber |
| Product colour | Black |
| Certification | FCC, CE |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Light levels (direct sunlight) | 0 - 3000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
