5000VA, 4500W, 1 x L6-30P In, 6 x 5-20R & 1x L6-30R &1 x L14-30R Out, Rack/Tower
Eaton

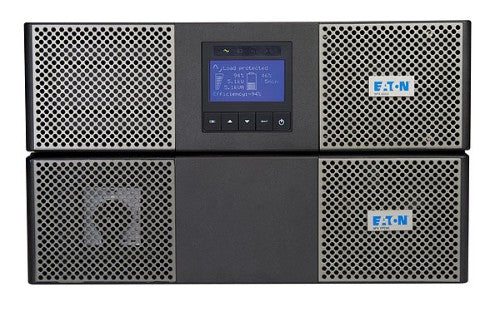

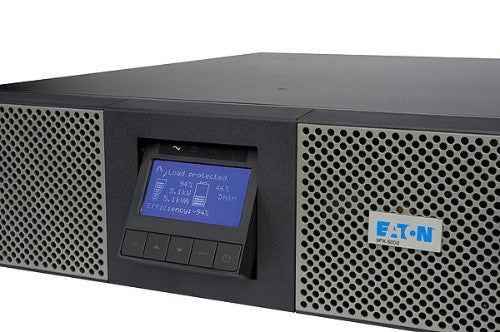

Eaton 9PX uninterruptible power supply (UPS) 5 kVA 4500 W 8 AC outlet(s)
Part number:
9PX5KP1
$6,046.47
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description

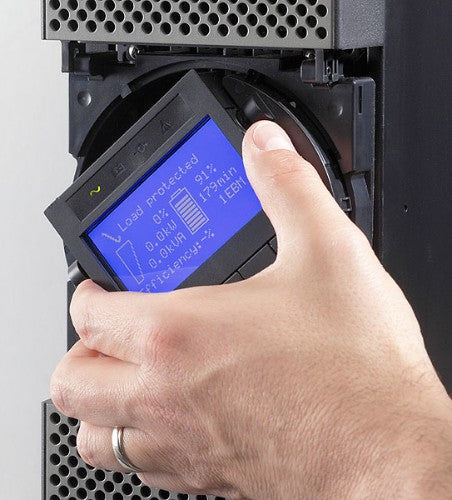

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust power management softwaremakes managing your UPS easy — even in virtualized environments.Specifications
| Power | |
|---|---|
| Input power factor | 0.99 |
| Output power | 4500 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output power capacity | 5 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–20R, NEMA L14-30R, NEMA L6-30R |
| Power plug | NEMA L6-30P |
| USB 2.0 ports quantity | 1 |
| Performance | |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 45 dB |
| Features | |
| Input power factor | 0.99 |
| Output power | 4500 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 45 dB |
| Output power capacity | 5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 6U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Safety | CE, cULus, NOM |
| Certification | IEC 62040-2:2006 Cat C2 / CISPR22 ClassA / FCC part15 |
| Cable length | 72" (1.83 m) |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 39370.1" (0 - 1000 m) |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | IEC 62040-2:2006 Cat C2 / CISPR22 ClassA / FCC part15 |
| Compliance certificates | RoHS |
| Safety | CE, cULus, NOM |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Safety regulation & standards | |
| Safety | CE, cULus, NOM |
| Weight & dimensions | |
| Weight | 202.8 lbs (92 kg) |
| Width | 17.3" (439 mm) |
| Height | 10.2" (259 mm) |
| Depth | 28.4" (721 mm) |
| Other features | |
| Output connection type | 6 x 5-20R & 1 x L6-30R & 1 x L14-30R |
