48U SmartRack Standard-Depth Rack Enclosure Cabinet with doors & side panels
Tripp Lite

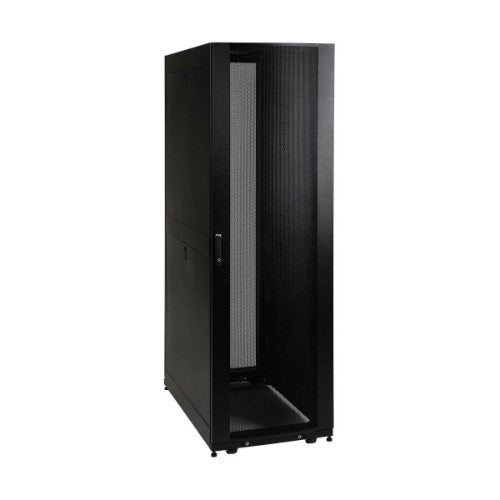

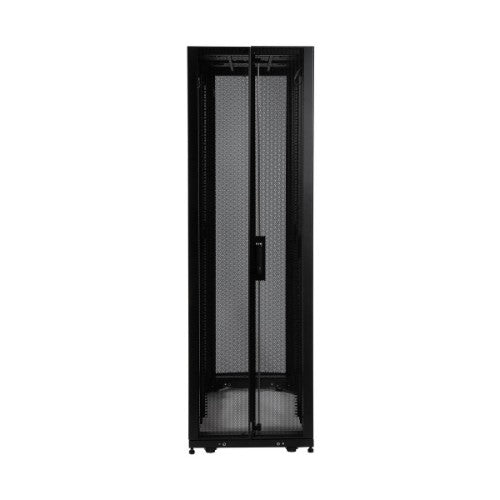

Tripp Lite SR48UB rack cabinet 48U Freestanding rack Black
Part number:
SR48UB
Sale price
$1,863.87
Regular price
$3,632.86
Save
$1,768.99
49%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 48U SmartRack enclosure with doors and side panels
- 4 interior vertical posts with unthreaded square hole openings
- Standard 24" width for optimizing floor space
- Ships fully assembled
- Massive front to rear ventilation capacity
- 3500 lbs (1588 kgs) stationary / 2250 lbs (1020.6 kgs) rolling load capacity
- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
- Preinstalled casters and leveling feet
- Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Description
SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers. Adjustable mounting rails include an easy-view depth index to eliminate time-consuming measurements. Lightweight modular doors and side panels provide safe, convenient service access. Integrated baying tabs facilitate combining enclosures in rows for standard data center baying applications. SmartRack enclosures hold up to 3500 lbs (1588 kgs) and support cooling, cable management, power distribution and monitoring features that keep critical servers and network equipment operating nonstop. Perforated doors permit massive front to rear airflow that exceeds servers manufacturer requirements. Enclosures are fully compatible with hot-aisle/cold-aisle data center configurations.Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 45" (1143 mm) |
| Package width | 26" (660.4 mm) |
| Package height | 95" (2413 mm) |
| Package weight | 356.9 lbs (161.9 kg) |
| Width | 23.6" (600.2 mm) |
| Depth | 43" (1092.2 mm) |
| Height | 89" (2260.6 mm) |
| Weight | 315 lbs (142.9 kg) |
| Maximum weight capacity | 3000.5 lbs (1361 kg) |
| Features | |
| Rack capacity | 48U |
| Type | Freestanding rack |
| Maximum weight capacity | 3000.5 lbs (1361 kg) |
| Product colour | Black |
| Certification | UL60950; RoHS |
| Packaging data | |
| Package depth | 45" (1143 mm) |
| Package width | 26" (660.4 mm) |
| Package height | 95" (2413 mm) |
| Package weight | 356.9 lbs (161.9 kg) |
| Technical details | |
| Package width | 26" (660.4 mm) |
| Package height | 95" (2413 mm) |
| Type | Freestanding rack |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 48U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | UL60950; RoHS |
| Logistics data | |
| Master (outer) case width | 26" (660.4 mm) |
| Master (outer) case length | 45" (1143 mm) |
| Master (outer) case height | 95" (2413 mm) |
| Master (outer) case gross weight | 356.9 lbs (161.9 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
