StarTech.com 6in (15cm) DisplayPort to Mini DisplayPort Cable - 4K x 2K UHD Video - DisplayPort Male to Mini DisplayPort Female Adapter Cable - DP to mDP 1.2 Monitor Extension Cable (DP2MDPMF6IN)
The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
The StarTech.com Advantage
StarTech.com

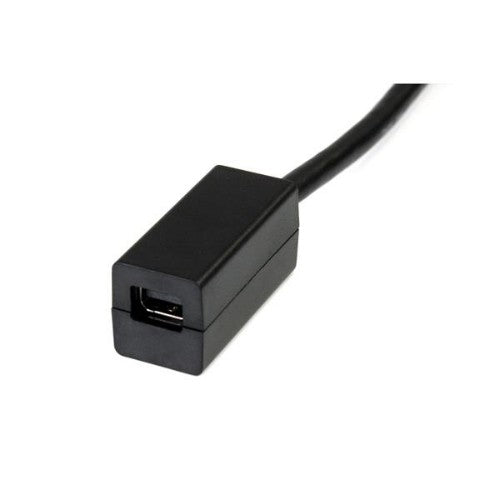

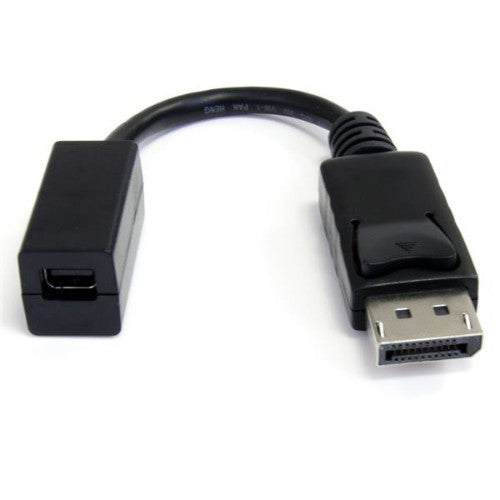

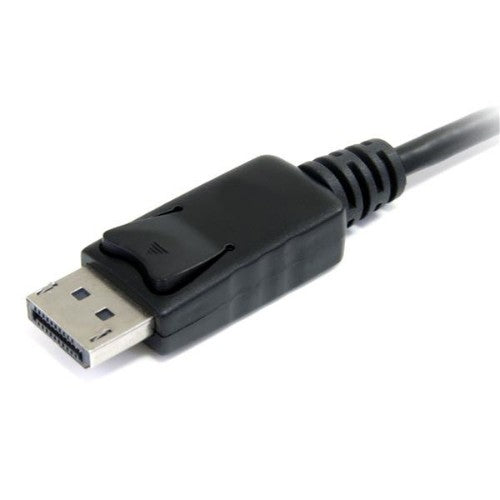

StarTech.com DP2MDPMF6IN DisplayPort cable 5.98" (0.152 m) Mini DisplayPort Black
Part number:
DP2MDPMF6IN
Sale price
$8.64
Regular price
$13.99
Save
$5.35
38%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 6in (15 cm) DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo
- RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works with laptop with standard DP port and workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display
- NOTE: This DisplayPort to MiniDisplayPort adapter is not compatible with TB monitors like the Apple A1407 Thunderbolt Display; The adapter cannot be used to connect Thunderbolt accessories like docks or audio interfaces to a DP port
Description
Connect your Mini DisplayPort® monitor to a standard DisplayPort source.The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| Cable rating | CMG (CM) |
| Number of conductors | 19 |
| Product colour | Black |
| Cable length | 5.98" (0.152 m) |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Nickel |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| DisplayPort version | 1.2 |
| Bandwidth | 21600 MB/s |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum refresh rate | 60 Hz |
| Multi-Stream Transport (MST) | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Cable diameter | 0.185" (4.7 mm) |
| Weight | 0.494 oz (14 g) |
| Package width | 7.87" (200 mm) |
| Package depth | 8.66" (220 mm) |
| Package weight | 0.776 oz (22 g) |
| Packaging data | |
| Cable diameter | 0.185" (4.7 mm) |
| Weight | 0.494 oz (14 g) |
| Package width | 7.87" (200 mm) |
| Package depth | 8.66" (220 mm) |
| Package weight | 0.776 oz (22 g) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 240 pc(s) |
| Master (outer) case width | 12.6" (320 mm) |
| Master (outer) case length | 19.7" (500 mm) |
| Master (outer) case height | 8.27" (210 mm) |
| Harmonized System (HS) code | 84733080 |
