5 x 2.5 Gbps RJ45, PoE, 25 Gbps, 4K MAC, 209 x 126 x 26 mm
TL-SG105PP-M2 is an unmanaged switch with 5 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The 2.5G ports support automatic negotiation to 10Mbps/100Mbps/1Gbps/2.5Gbps according to the type of connected device and provide sufficient bandwidth to unlock the highest performance of 2.5G/Multi-Gigabit devices, including NAS, a personal workstation, 8K video stream, and 2.5G Wi-Fi 6 AP.
Power Over Ethernet
4 RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those connected IEEE 802.3af/at/bt compliant Powered Devices (PDs).
Overload Arrangement
TL-SG105PP-M2 has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 35 W respectively (maximum power per port is 60 W); the system power is 105W in total. If there is an additional PD inserted to port 1 with 23 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1 will use 23 W respectively and port 2&3 will use 35 W, no power will be supplied to port 4.
Highlight Performance
- With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
- Provides super-fast connections to 2.5G NAS, Server, 2.5G PCIe Adapter/ NIC, gaming computer, 2.5G WiFi 6 AP, 8K video, and more.
- Auto-negotiation for 10Mbps/100Mbps/1Gbps/2.5Gbps connections provide optimal performance.
TL-SG105PP-M2 is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ TL-SG105PP-M2 is a great selection for expanding your network.
TP-Link

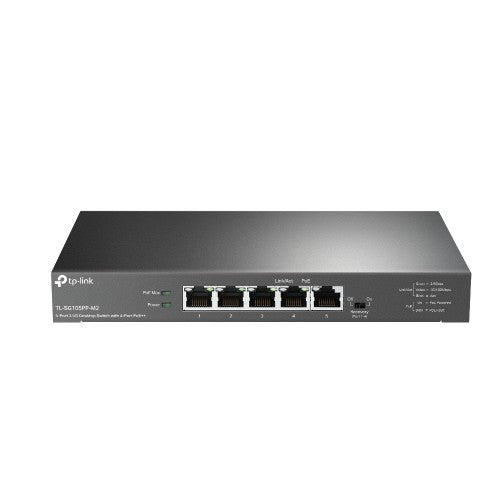

TP-Link TL-SG105PP-M2 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TL-SG105PP-M2
$170.50
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- With four PoE++ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt type3 compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 60 W for each PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Description
OverviewTL-SG105PP-M2 is an unmanaged switch with 5 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The 2.5G ports support automatic negotiation to 10Mbps/100Mbps/1Gbps/2.5Gbps according to the type of connected device and provide sufficient bandwidth to unlock the highest performance of 2.5G/Multi-Gigabit devices, including NAS, a personal workstation, 8K video stream, and 2.5G Wi-Fi 6 AP.
Power Over Ethernet
4 RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those connected IEEE 802.3af/at/bt compliant Powered Devices (PDs).
Overload Arrangement
TL-SG105PP-M2 has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 35 W respectively (maximum power per port is 60 W); the system power is 105W in total. If there is an additional PD inserted to port 1 with 23 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1 will use 23 W respectively and port 2&3 will use 35 W, no power will be supplied to port 4.
Highlight Performance
- With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
- Provides super-fast connections to 2.5G NAS, Server, 2.5G PCIe Adapter/ NIC, gaming computer, 2.5G WiFi 6 AP, 8K video, and more.
- Auto-negotiation for 10Mbps/100Mbps/1Gbps/2.5Gbps connections provide optimal performance.
TL-SG105PP-M2 is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ TL-SG105PP-M2 is a great selection for expanding your network.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 25 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 18.6 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Steel |
| Rack mounting | No |
| Certification | CE, FCC, RoHS |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 143.37 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Number of power supply units | 1 |
| Input voltage | 53.5 V |
| Input current | 2.43 A |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 123 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 488.89 BTU/h |
| Weight & dimensions | |
| Width | 8.23" (209 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.02" (26 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Housing material | Steel |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 53.5 V |
