StarTech.com 1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000Mbps, PoE++ (802.3af/802.3at/802.3bt)
This 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.
Streamlined Cable Management
With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
StarTech.com

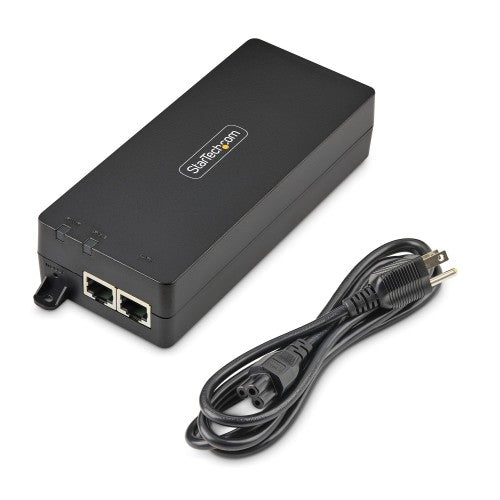

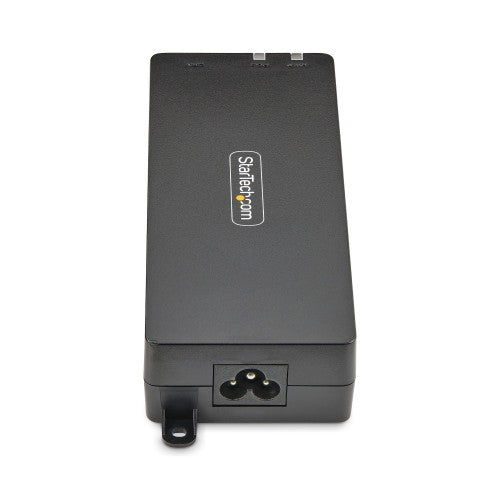

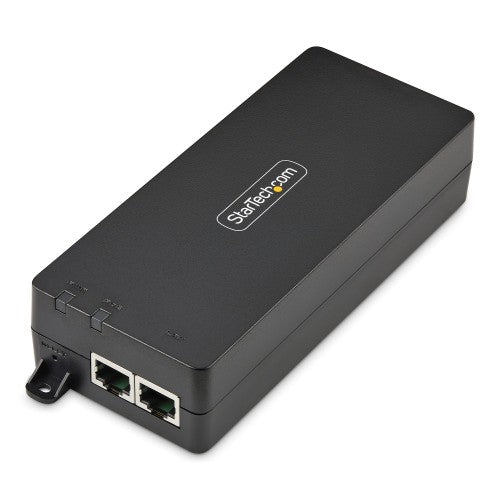

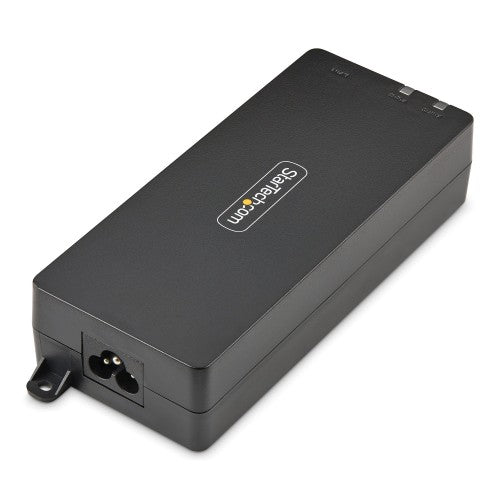

StarTech.com AF41XC-POE-INJECTOR PoE adapter 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Part number:
AF41XC-POE-INJECTOR
Sale price
$116.37
Regular price
$128.99
Save
$12.62
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 10G POE++ INJECTOR: Single-port TAA-compliant PoE midspan injector supports up to 10Gbps and 90W of power (PoE/PoE+/PoE++); Features OVP, OCP, and SCP protection for enhanced reliability and durability, and a fan-less design to ensure silent operation
- MULTIGIGABIT 90W DATA & POWER: Auto-negotiation between 10/100/1000Mbps/2.5G/5G/10G; Delivers 10Gbps data & up to 90W of power to a single powered device up to 262ft (80m) away, up to 5Gbps and 90W of power up to 328ft (100m)
- HASSLE-FREE INSTALLATION: Internal power supply and integrated wall-mounting ears with front-facing screw holes offer convenient, versatile installation, especially in hard-to-reach areas; Cables can be routed from one side for better cable management
- APPLICATIONS: Provides more power and bandwidth over a single RJ45 connection to demanding PoE devices such as high resolution IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points (APs); Ideal for remote IP devices without available power outlets
- TECH SPECS: RJ45 Shielded Socket (data/data+power); 90W max output; 54V 1.7A output; Compliant with IEEE 802.3af/at & IEEE 802.3bt; 10/100/1000 Mbps & 1/2.5/5Gbps; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
Description
Supply power and data to a PoE device over standard Ethernet cablingThis 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.
Streamlined Cable Management
With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cabling technology | 1000/10000 |
| Web-based management | No |
| Chipset | SkyWorks - Si3471A-A01 |
| Features | |
| Wall mountable | Yes |
| Maximum operating distance | 3937" (100 m) |
| Product colour | Black |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Power protection features | Over current, Over voltage, Short circuit |
| LED indicators | Yes |
| Housing material | Plastic |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto-negotiation | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output current | 1.7 A |
| Total Power over Ethernet (PoE) budget | 90 W |
| AC adapter output voltage | 56 V |
| Input current | 1.5 A |
| AC adapter input voltage | 100 - 240 V |
| Suitable for use in country/location | United States |
| Technical details | |
| Package width | 4.88" (124 mm) |
| Package height | 2.01" (51 mm) |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 80 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Package weight | 21.2 oz (600 g) |
| Package depth | 8.27" (210 mm) |
| Package width | 4.88" (124 mm) |
| Package height | 2.01" (51 mm) |
| Weight | 12.3 oz (350 g) |
| Width | 2.52" (64 mm) |
| Depth | 6.69" (170 mm) |
| Height | 1.34" (34 mm) |
| Packaging data | |
| Package weight | 21.2 oz (600 g) |
| Package depth | 8.27" (210 mm) |
| Package width | 4.88" (124 mm) |
| Package height | 2.01" (51 mm) |
| Packaging content | |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 11.3" (286 mm) |
| Master (outer) case length | 20.6" (522 mm) |
| Master (outer) case height | 17.9" (455 mm) |
| Products per master (outer) case | 40 pc(s) |
