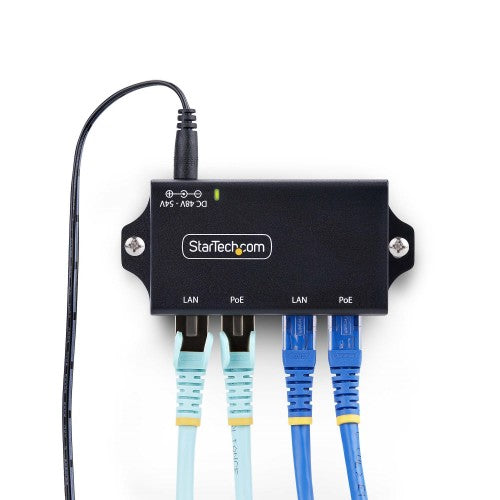

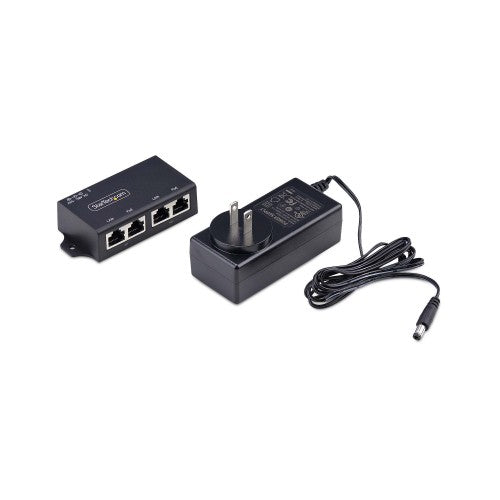

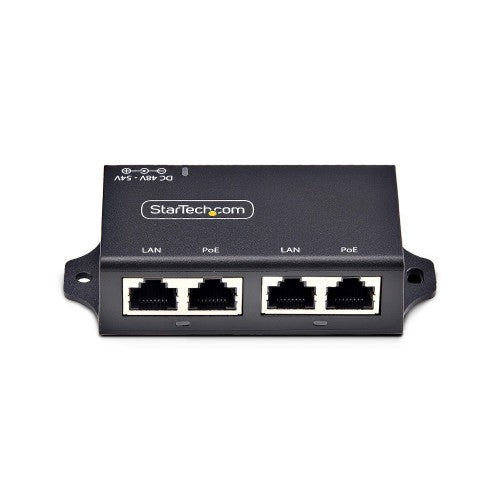

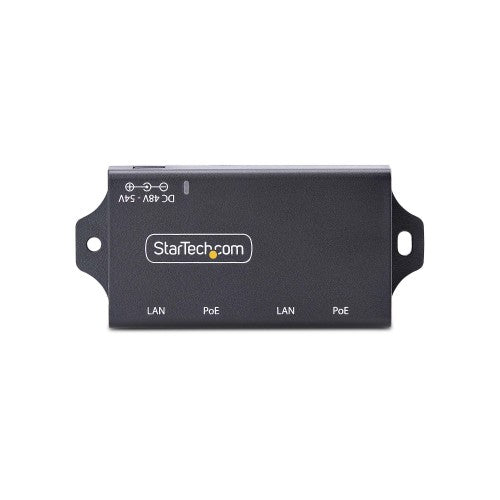

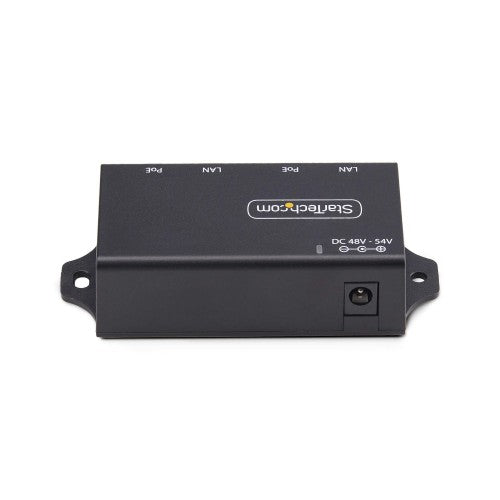

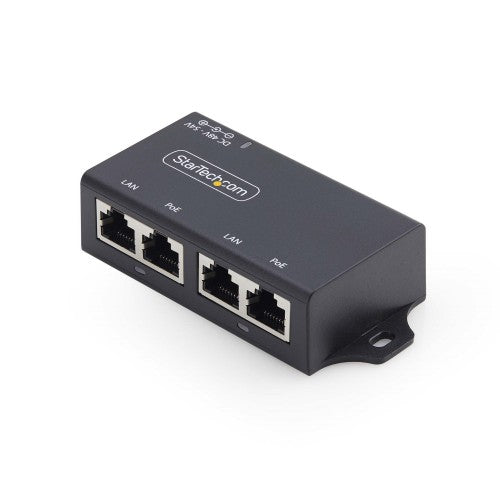

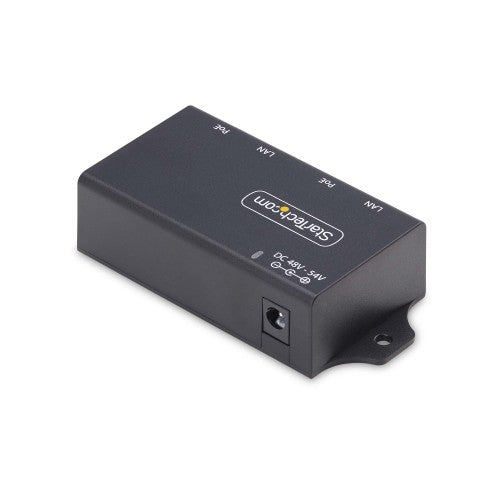

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/at), 4x 10/100/1000BASE-T RJ45, 30W, Wall Mountable
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
StarTech.com
StarTech.com AF221C-POE-INJECTOR PoE adapter Fast Ethernet, Gigabit Ethernet
Part number:
AF221C-POE-INJECTOR
Sale price
$63.53
Regular price
$70.99
Save
$7.46
11%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
- NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV

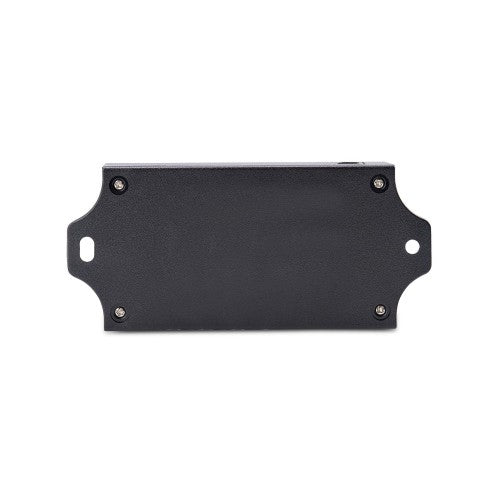

- HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
- APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
- TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm)
Description
Supply power and data to two PoE devices over standard Ethernet cablingThis 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Web-based management | No |
| Chipset | IC Plus - IP802AR |
| Features | |
| Wall mountable | Yes |
| Surge protection | Yes |
| Maximum operating distance | 3937" (100 m) |
| Product colour | Black |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| LED indicators | Yes |
| Housing material | Plastic |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto-negotiation | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| Power | |
| Output power | 30 W |
| Output current | 1.25 A |
| Power consumption (max) | 65 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| AC adapter output voltage | 52 V |
| Input current | 1.5 A |
| AC adapter input voltage | 100 - 240 V |
| Power plug type | Type M |
| Suitable for use in country/location | United States |
| Surge protection voltage | 2 kV |
| Technical details | |
| Package width | 6.69" (170 mm) |
| Package height | 1.18" (30 mm) |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Package weight | 3.88 oz (110 g) |
| Package depth | 5.59" (142 mm) |
| Package width | 6.69" (170 mm) |
| Package height | 1.18" (30 mm) |
| Weight | 2.12 oz (60 g) |
| Width | 1.81" (46 mm) |
| Depth | 4.02" (102 mm) |
| Height | 0.984" (25 mm) |
| Packaging data | |
| Package weight | 3.88 oz (110 g) |
| Package depth | 5.59" (142 mm) |
| Package width | 6.69" (170 mm) |
| Package height | 1.18" (30 mm) |
| Packaging content | |
| Quick installation guide | Yes |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 23.8" (605 mm) |
| Master (outer) case length | 12.8" (325 mm) |
| Master (outer) case height | 15.2" (385 mm) |
| Products per master (outer) case | 80 pc(s) |
