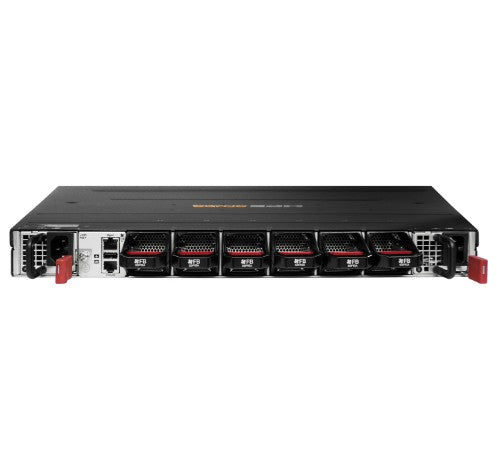

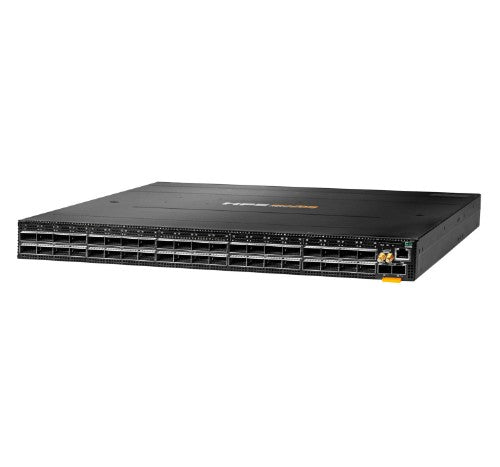

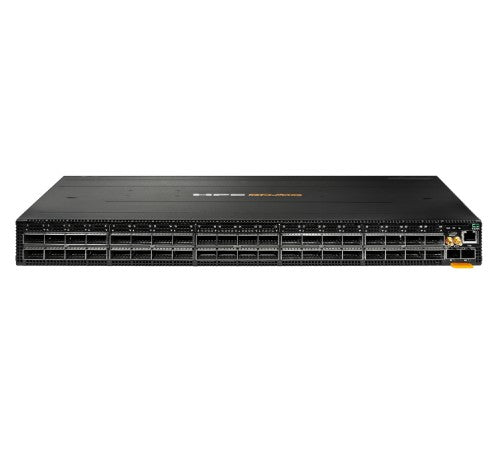

HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC TAA Bundle, Managed, L3, Rack mounting, 1U
HPE
HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC TAA Bundle Managed L3 1U
Part number:
S0F81A#ABA
$71,762.72
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP‑DD 400G Front‑to‑Back 6xFan 2xAC TAA Bundle. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. Switching capacity: 8000 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 40 |
| Fiber optic connector | QSFP-DD, QSFP28 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 32 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4040 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Virtual LAN features | Private VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Switching capacity | 8000 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4040 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP4, OSPFv2, OSPFv3, RIP-2, RIPng, VRRP |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 6 fan(s) |
| Redundant fans support | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 600 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Heat dissipation | 4435 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4040 |
| Virtual LAN features | Private VLAN |
| Weight & dimensions | |
| Width | 17.3" (438.4 mm) |
| Depth | 23.2" (590 mm) |
| Height | 1.71" (43.5 mm) |
| Weight | 26 lbs (11.8 kg) |
| Optical fiber | |
| Fiber optic connector | QSFP-DD, QSFP28 |
| Technical details | |
| Form factor | 1U |
| Rack mounting | Yes |
