Intel Core Ultra 7 155H (24MB Cache), 16GB DDR5-SDRAM, 1000GB SSD, 68.6 cm (27") Wide Quad HD 2560 x 1440 IPS, Intel Arc Graphics, WLAN, Bluetooth, Webcam, Windows 11 Pro
The AI era is upon us. Are you ready for the transformation in work and everyday life? Let's work together with the Modern AM273Q AI Series to embrace the next-level AI experience with faster, power-saving, AI-enabled processors.
MSI AI Engine
MSI AI Engine automatically detects user scenarios and adjusts performance, sound effects, and display mode accordingly, eliminating the need for manual adjustments.
Windows Studio Effects
Using AI to enhance videos with features like background effects, eye contact correction, automatic framing, and voice focus for professional and engaging video conferencing.
Eye-Q Check
With Eye-Q check, you can self-access your eye health while working long hours, preventing eye problems from escalating.
WQHD (2560 x 1440)
WQHD (2560 x 1440) resolution expands your workspace, providing sharper readability, vivid 3D effects, and enhanced aesthetics for a better user experience.
Built for Sustainability
The MSI All-in-One PCs blend business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The MSI All-in-One PCs embody sustainable value and heightened productivity.
MSI

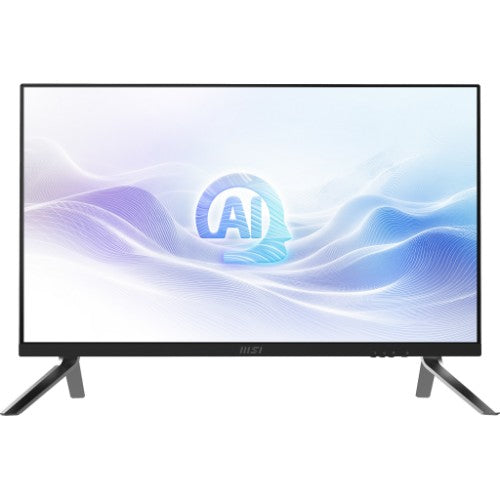

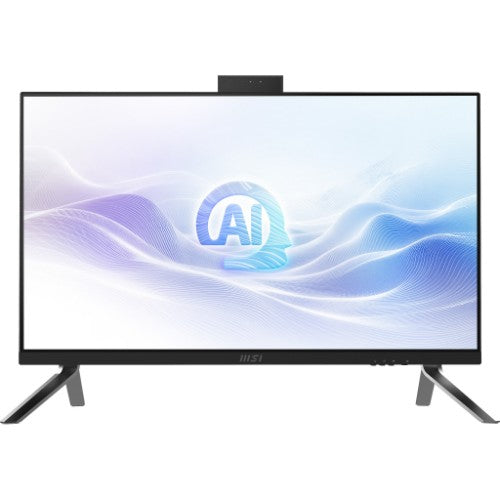

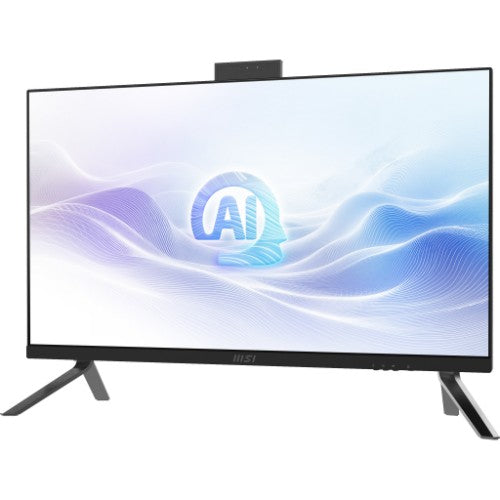

MSI Modern AM273Q AI 1UM-039US Intel Core Ultra 7 155H 27" 2560 x 1440 pixels All-in-One PC 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Wi-Fi 6E (802.11ax) Black
Part number:
AM273QAI1UM039
$1,268.80
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Windows 11 Pro
- Intel Core Ultra 7 155H (24MB Cache)
- 68.6 cm (27") Wide Quad HD 2560 x 1440 IPS
- 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
Description
To Be Future-ReadyThe AI era is upon us. Are you ready for the transformation in work and everyday life? Let's work together with the Modern AM273Q AI Series to embrace the next-level AI experience with faster, power-saving, AI-enabled processors.
MSI AI Engine
MSI AI Engine automatically detects user scenarios and adjusts performance, sound effects, and display mode accordingly, eliminating the need for manual adjustments.
Windows Studio Effects
Using AI to enhance videos with features like background effects, eye contact correction, automatic framing, and voice focus for professional and engaging video conferencing.
Eye-Q Check
With Eye-Q check, you can self-access your eye health while working long hours, preventing eye problems from escalating.
WQHD (2560 x 1440)
WQHD (2560 x 1440) resolution expands your workspace, providing sharper readability, vivid 3D effects, and enhanced aesthetics for a better user experience.
Built for Sustainability
The MSI All-in-One PCs blend business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The MSI All-in-One PCs embody sustainable value and heightened productivity.
Specifications
| Display | |
|---|---|
| Pixel pitch | 0.00918 x 0.00918" (0.233 x 0.233 mm) |
| HD type | Wide Quad HD |
| Tilt angle range | -4 - 20° |
| Panel type | IPS |
| Display diagonal | 27" |
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| Display brightness | 300 cd/m² |
| Processor | |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor cache type | Smart Cache |
| Processor boost frequency | 4.8 GHz |
| Processor family | Intel Core Ultra 7 |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Memory form factor | DIMM/SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Hard drive | |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Storage | |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Card reader integrated | Yes |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC256 |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 3 W |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 2 MP |
| Camera HD type | Full HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | No |
| Ethernet LAN data rates | 2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |

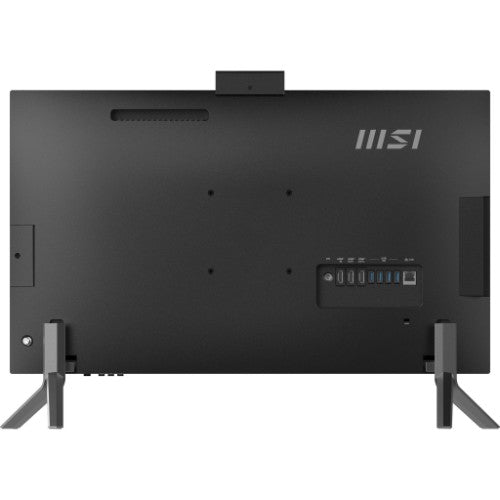

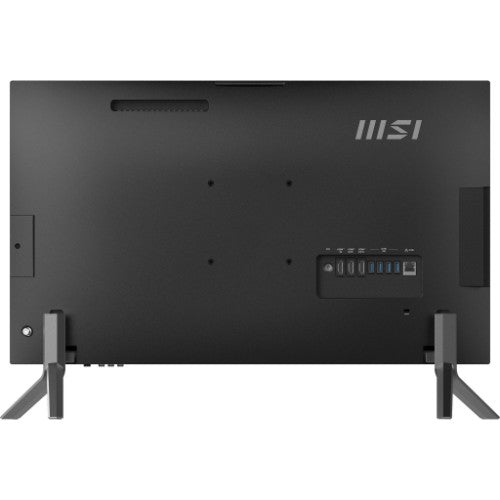

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Technical details | |
| Product type | All-in-One PC |
| Product colour | Black |
| Security | |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | Yes |
| Performance | |
| Product type | All-in-One PC |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Power | |
| AC adapter power | 120 W |
| Multimedia | |
| Built-in camera | Yes |
| Total megapixels | 2 MP |
| Camera HD type | Full HD |
| Weight & dimensions | |
| Package width | 27.6" (700 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 18.6" (473 mm) |
| Package weight | 21.2 lbs (9.6 kg) |
| Width (with stand) | 25.1" (638.1 mm) |
| Depth (with stand) | 7.11" (180.7 mm) |
| Height (with stand) | 17" (433.1 mm) |
| Weight (with stand) | 11 lbs (5 kg) |
| Packaging data | |
| Package width | 27.6" (700 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 18.6" (473 mm) |
| Package weight | 21.2 lbs (9.6 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | CB/CE |
| Other features | |
| On-board graphics card | Yes |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Processor manufacturer | Intel |
| Number of SSDs installed | 1 |
