EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point
Omada Professional Outdoor Wireless Bridge Solution
Point-to-Point (PtP) Network Expansion or Remote Camera Monitoring
Outdoor PtP (Point-to-Point) Wi-Fi Connection
Point-to-Multipoint (PtMP) Connections with Higher Beamwidth for Distributed Cameras
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance
TP-Link

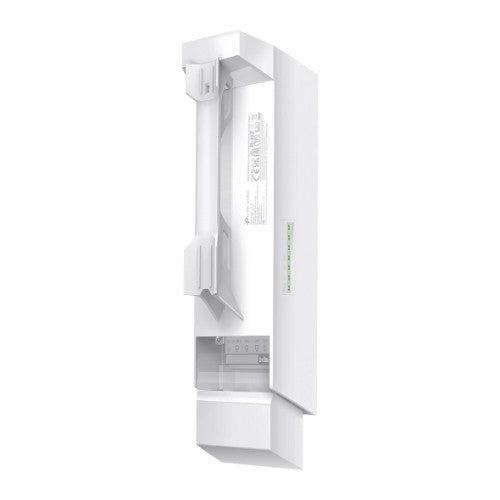

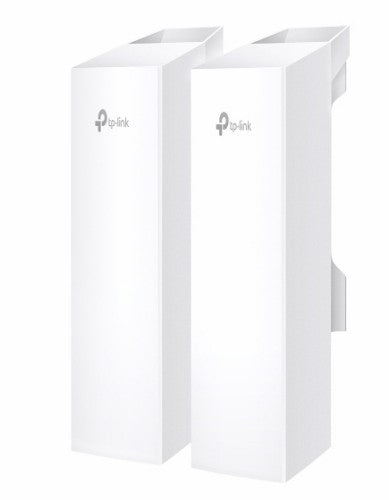

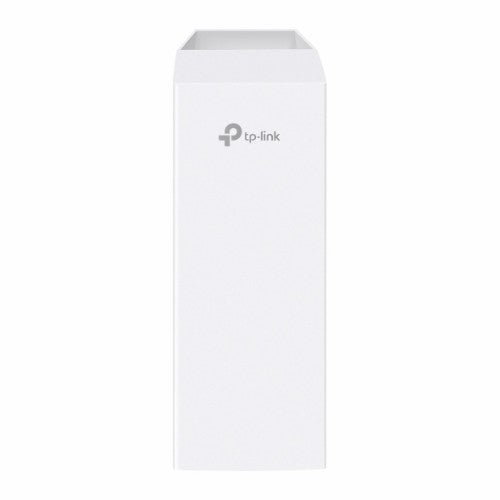

TP-Link Omada EAP115-BRIDGE KIT wireless access point 300 Mbit/s White
Part number:
EAP115-Bridge KIT
$86.80
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 5 km.
- Auto-pairing and agile LEDs for efficient deployment.

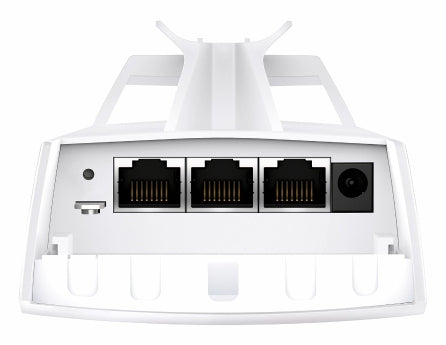

- 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
Description
Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple ScenariosOmada Professional Outdoor Wireless Bridge Solution
Point-to-Point (PtP) Network Expansion or Remote Camera Monitoring
Outdoor PtP (Point-to-Point) Wi-Fi Connection
Point-to-Multipoint (PtMP) Connections with Higher Beamwidth for Distributed Cameras
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | CE, FCC, RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Features | |
| 6 GHz | No |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 300 Mbit/s |
| Maximum Tx power (5 GHz) | 50 dBmW |
| Security | |
| Security algorithms | SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal |
| MAC address filtering | Yes |
| Management features | |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 11 dBi |
| Antenna direction type | Directional |
| Technical details | |
| Reset button | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 3.11" (79 mm) |
| Depth | 2.36" (60 mm) |
| Height | 8.82" (224 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Cables included | AC |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Cables included | AC |
| Quantity per pack | 2 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Quantity per pack | 2 pc(s) |
