8-Port 2.5G PoE++ Switch
TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.
Trendnet

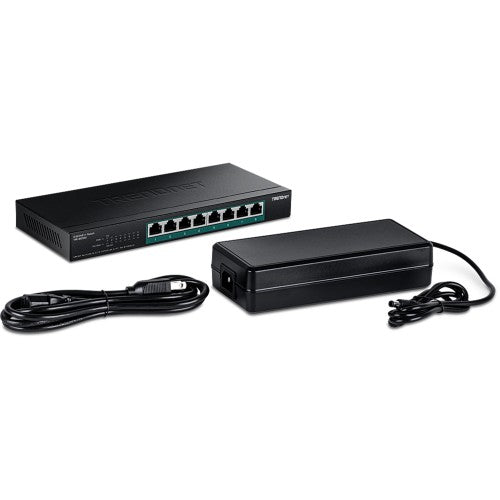

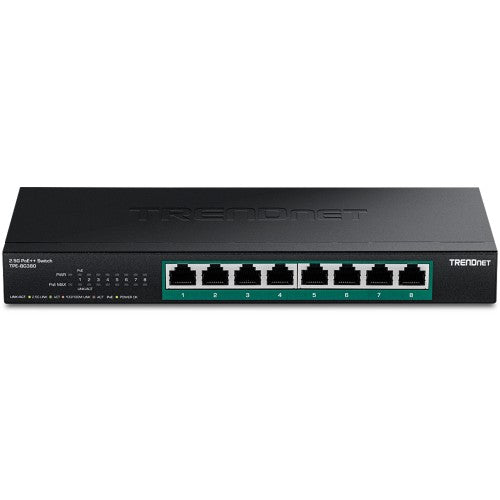

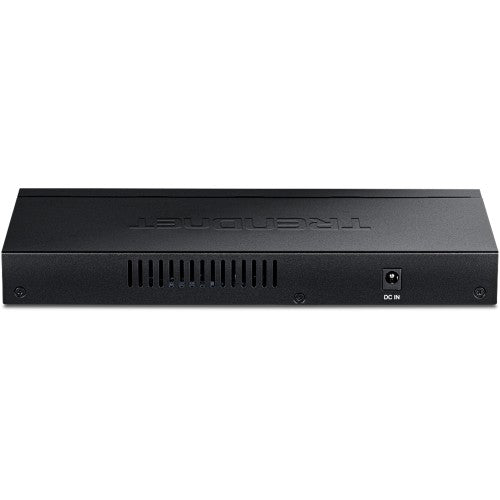

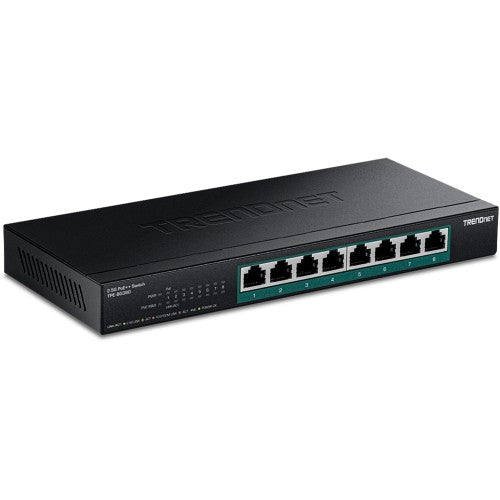

Trendnet TPE-BG380 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
Part number:
TPE-BG380
Sale price
$272.84
Regular price
$274.99
Save
$2.15
1%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x 2.5G PoE++ ports
- 230W PoE power budget
- Backwards compatible with 10/100/1000Mbps devices
- Compatible with existing Cat5e or better cabling
- Fanless design eliminates noise
- Wall mountable for installation flexibility
- 40Gbps switching capacity
- IEEE 802.3bz (2.5G) compliant
- Supports IEEE 802.3af/at/bt
- NDAA / TAA compliant (U.S. and Canada only)
Description
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| MAC address table | 4000 entries |
| Switching capacity | 40 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 29.76 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Certification | CE FCC |
| Performance | |
| Mean time between failures (MTBF) | 288800 h |
| Power | |
| Power consumption (max) | 9.5 W |
| Power protection features | Over current, Short circuit |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4.7 A |
| DC input voltage | 46 - 54 V |
| Power source | AC/DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 95 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Over current, Short circuit |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 9.45" (240 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.06" (27 mm) |
| Weight | 25.3 oz (716 g) |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 288800 h |
| Certificates | |
| Certification | CE FCC |
