AX1500 Whole Home Mesh Wi-Fi 6 System

Description

Immersive Experience With Whole Home High-speed Wi-Fi 6

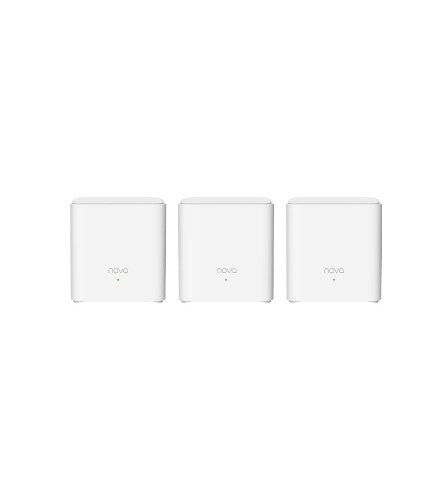

Whole Home Mesh Wi-Fi 6 System

Whole Home Coverage
With stronger signals enhanced by intelligent high-gain antennas and 6 signal enhancement modules，it can easily cover up to 3500ft² with 3 nodes，eliminating all the dead zone of your house.

Faster Wi-Fi 6 For Better Experience
Armed with Wi-Fi 6 technology, its dual-band concurrent speed is up to 1501 Mbps (5GHz: 1201 Mbps 2.4 GHz: 300 Mbps), maintaining speedy Wi-Fi 6 throughout your home.

Intelligent Troubleshooting
With built-in intelligent network failure diagnosis function, it can easily solve common network failures.

One Wi-Fi Name,Smooth Seamless Roaming
EX3 units work together under one unified network supported by 802.11k/v protocol and AP steering technology, creating seamless roaming experiences. Your devices will automatically connect to the best node as you move around in your house.

Multiple Connections Can Also be Stress-free
Supporting OFDMA and MU-MIMO technology, EX3 is tested to connect over 80 devices simultaneously without dragging down performance.

Parental Control
Maintain control over children's online time and behavior,cultivate children's healthy habit of surfing the Internet.

Specifications

Design
Product colour	White
LED indicators	System
Antenna type	Internal
Antennas quantity	2
Reset button	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Certification	CE, FCC. RoHS
Product type	Mesh system
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms	WPA2-PSK, WPA3, WPA3-SAE, WPS
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
Point-to-point protocol over Ethernet (PPPoE)	Yes
Static IP	Yes
Dynamic IP	Yes
Dynamic DNS (DDNS)	Yes
VPN support	IPsec Pass Through PPTP Pass Through L2TP Pass Through PPTP VPN Server PPTP VPN Client L2TP VPN Client
WLAN data transfer rate (max)	1201 Mbit/s
Features
DHCP client	Yes
DHCP server	Yes
Parental control	Yes
MIMO	Yes
Parental control features	Weekly/monthly reports
Works with Amazon Alexa	Yes
MU-MIMO technology	Yes
Protocols
DHCP client	Yes
DHCP server	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Ethernet WAN	Yes
Power
AC adapter output voltage	12 V
AC adapter output current	1 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Certificates
Certification	CE, FCC. RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	3.54" (90 mm)
Depth	3.54" (90 mm)
Height	3.66" (93 mm)
Packaging content
Number of products included	3 pc(s)
Quick installation guide	Yes
