8-Port Gigabit Ethernet Switch
8-Port Gigabit Ethernet Switch SG108M
Full Gigabit Port, Full Speed Connection
Equipped with 8*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.
Small And Exquisite, Save More Space
124mm*59mm*23mm super mini body, save more space. It also supports wall mount that can be placed anywhere.
Plug And Play, Convenient Networking
Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wide Application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
Tenda

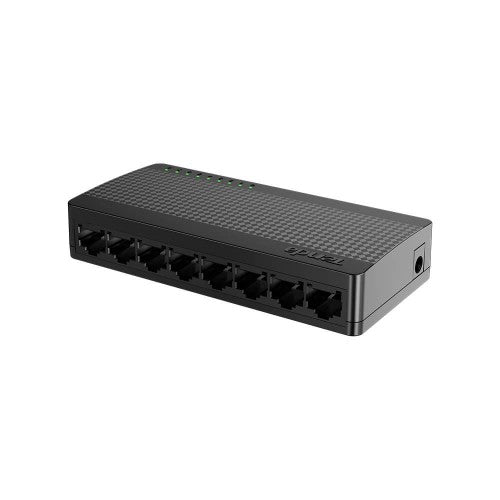

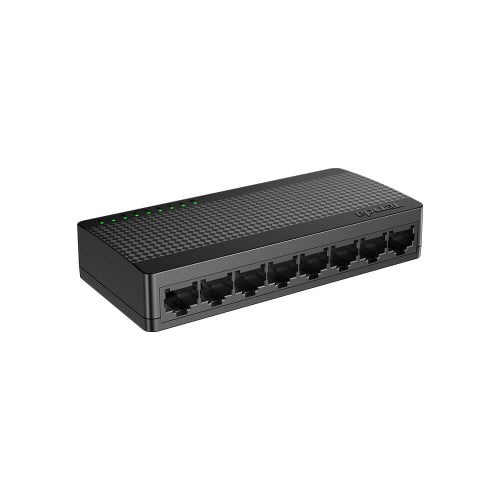

Tenda SG108M network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Part number:
SG108M
Sale price
$20.91
Regular price
$24.99
Save
$4.08
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
All Gigabit Ports, High-speed Network8-Port Gigabit Ethernet Switch SG108M
Full Gigabit Port, Full Speed Connection
Equipped with 8*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.
Small And Exquisite, Save More Space
124mm*59mm*23mm super mini body, save more space. It also supports wall mount that can be placed anywhere.
Plug And Play, Convenient Networking
Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wide Application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat3, Cat5, Cat5e |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Link, Power |
| Housing material | Plastic |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 3 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 4.88" (124 mm) |
| Depth | 2.32" (59 mm) |
| Height | 0.906" (23 mm) |
| Performance | |
| Packet buffer memory | 4 MB |
| Stackable | No |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Plastic |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 4 MB |
| Indication | |
| LED indicators | Link, Power |
