24x 10/100/1000 Mbps RJ45, 4x 10G SFP+, 2x USB 2.0, 1x RJ45, 1× USB Type-C, 1× RJ45 Management, 128 Gbps, 32 K MAC, 9 KB Jumbo, 440 x 380 x 44 mm
Omada SG6428X is a high-performance L3 managed switch tailored for the convergence layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.
High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
TP-Link

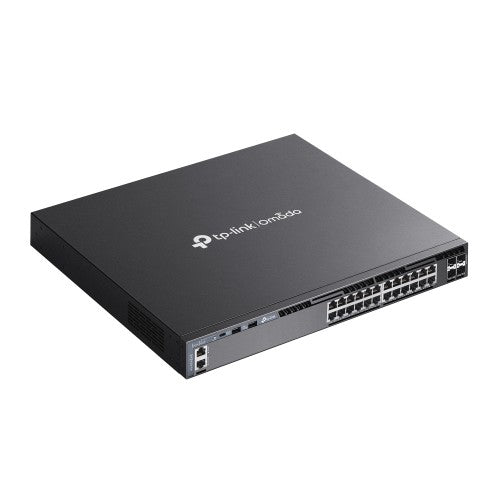

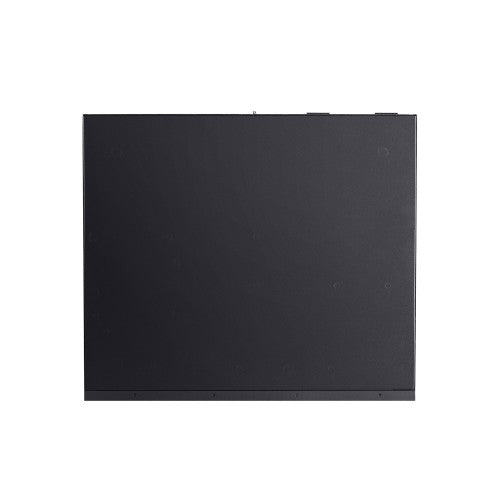

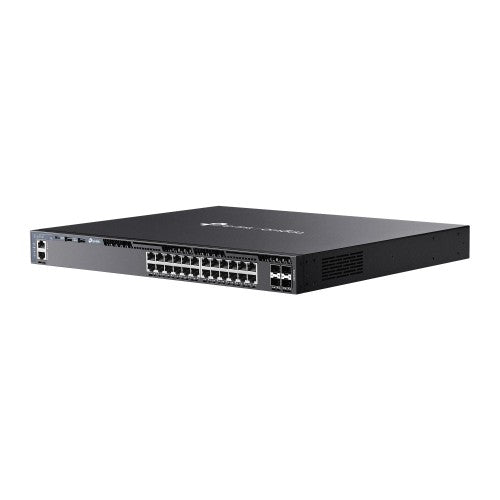

TP-Link Omada SG6428X network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Part number:
SG6428X
Sale price
$879.84
Regular price
$899.99
Save
$20.15
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Description
What This Product DoesOmada SG6428X is a high-performance L3 managed switch tailored for the convergence layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× Gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG6428X offers a dependable networking solution for SMBs, enterprises, and ISPs.
High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| IGMP snooping | Yes |
| IGMP entries | 2048 |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 95.2 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 2048 |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 4 fan(s) |
| Power | |
| Power consumption (max) | 28.4 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 96.91 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 15" (380 mm) |
| Height | 1.73" (44 mm) |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, LAN (RJ-45) |
| Performance | |
| Packet buffer memory | 3 MB |
| Stackable | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 3 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Manual | Yes |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
