IPQ6010 Quad-core A53 1.8 GHz, SPI 8 MB, 56 MB, 2.4 GHz, 5 GHz

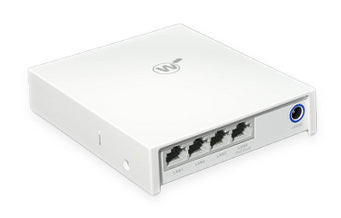

The WatchGuard AP230W is a high-performance 2x2 Wi-Fi 6 802.11ax designed for indoor wall mount deployments, and supports 574 Mbps data rate on the 2.4 GHz band and 1.2 Gbps on the 5 GHz band.
The AP230W also has a third 1x1 dual band 2.4 GHz and 5 GHz radio dedicated for security scanning to detect and respond to Wi-Fi threats.

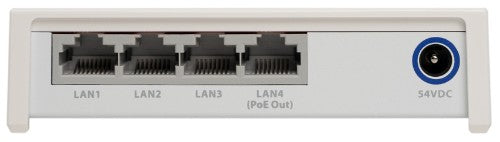

Four additional Ethernet LAN ports provide wired connectivity. One of these wired ports also provides PoE/PSE output (802.3af) to power other devices.

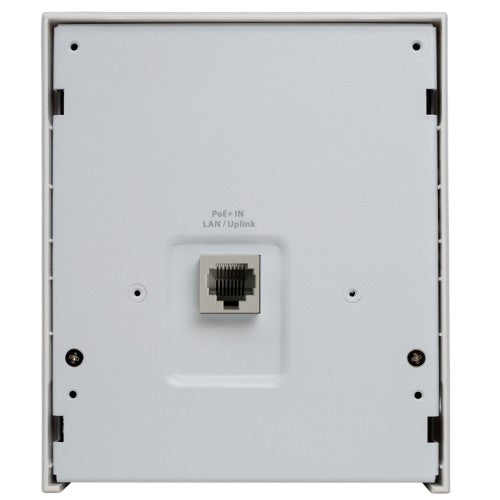

You can power the access point with a PoE+ (Power over Ethernet) power source or an optional AC power adapter.
Access Point Management
You can manage your access point with WatchGuard Cloud. WatchGuard Cloud delivers simplified Wi-Fi management to easily deploy, configure, and report on one unified platform for security. It eliminates the need for any physical or virtual infrastructure requirements, with multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform.
WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.
For more information on how to set up your access point with WatchGuard Cloud, go to watchguard.com/start.
WatchGuard
WatchGuard AP230W 1200 Mbit/s White Power over Ethernet (PoE)
Part number:
WGA230W00000
$381.53
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
WatchGuard AP230W Hardware GuideThe WatchGuard AP230W is a high-performance 2x2 Wi-Fi 6 802.11ax designed for indoor wall mount deployments, and supports 574 Mbps data rate on the 2.4 GHz band and 1.2 Gbps on the 5 GHz band.
The AP230W also has a third 1x1 dual band 2.4 GHz and 5 GHz radio dedicated for security scanning to detect and respond to Wi-Fi threats.
Four additional Ethernet LAN ports provide wired connectivity. One of these wired ports also provides PoE/PSE output (802.3af) to power other devices.
You can power the access point with a PoE+ (Power over Ethernet) power source or an optional AC power adapter.
Access Point Management
You can manage your access point with WatchGuard Cloud. WatchGuard Cloud delivers simplified Wi-Fi management to easily deploy, configure, and report on one unified platform for security. It eliminates the need for any physical or virtual infrastructure requirements, with multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform.
WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.
For more information on how to set up your access point with WatchGuard Cloud, go to watchguard.com/start.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 26.34 dBmW |

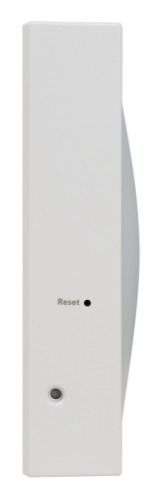

| Reset button | Yes |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Certification | WEEE, RoHS, REACH |
| Maximum data transfer rate | 1200 Mbit/s |
| Wireless LAN features | |
| Frequency band | 2.4 - 5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | TKIP, WPA-PSK, WPA2, WPA2-PSK |
| Certificates | |
| Compliance industry standards | FCC, IC, CE |
| Certification | WEEE, RoHS, REACH |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), REACH, RoHS, WEEE |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 26.34 dBmW |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power supply | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.4 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | WEEE, RoHS, REACH |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 26.34 dBmW |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), REACH, RoHS, WEEE |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 5.12" (130 mm) |
| Depth | 4.33" (110 mm) |
| Weight | 13.5 oz (384 g) |
| Height | 1.35" (34.2 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Other features | |
| Compliance industry standards | FCC, IC, CE |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
