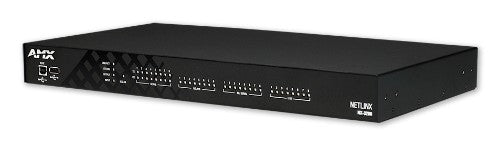

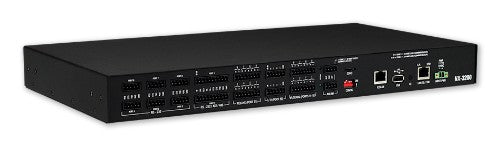

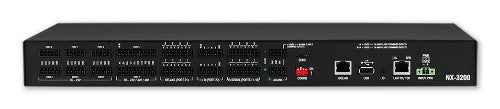

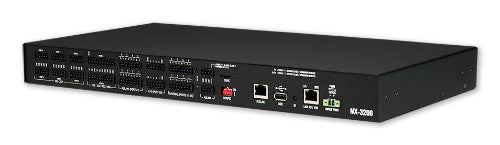

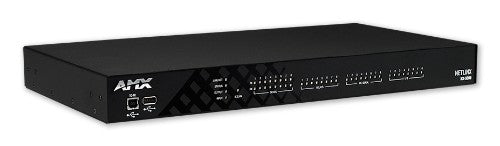

AMX NX-3200 gateway/controller 10, 100 Mbit/s
  • AMX NX-3200 gateway/controller 10, 100 Mbit/s
  • AMX NX-3200 gateway/controller 10, 100 Mbit/s
  • AMX NX-3200 gateway/controller 10, 100 Mbit/s
  • AMX NX-3200 gateway/controller 10, 100 Mbit/s
  • AMX NX-3200 gateway/controller 10, 100 Mbit/s
AMX NX-3200 gateway/controller 10, 100 Mbit/s
AMX

AMX NX-3200 gateway/controller 10, 100 Mbit/s

Part number: FG2106-03
$2,233.78

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

LAN, ICSLan, RS-232, 512 MB RAM, 8 GB SDHC, 45.15x431.8x231.64 mm

Key Features

  • Larger Port Configuration – 8/8/8/8 (Serial, Relay, IR, Digital I/O), versus 4/4/4/4 for the NX-2200
  • Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
  • Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
  • High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
  • Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • Network Syslog – Supports standard device logging to a syslog server
  • Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • File Import / Export From USB Drive – Backup and restore configuration and program data and update firmware from a standard USB flash drive
  • Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics

Description

The NX-3200 / NetLinx NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-3200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-3200 adds more ports to the NX-2200, giving it the ability to integrate a larger number of devices. The NX-3200 controls a wide variety of components including audio/video conferencing, projectors, DVD and Blu-ray players, lights, thermostats and other electronic equipment found in larger spaces. With these technology-driven environments, the NX-3200 also provides solutions for future expansion and enables the addition of more devices and control capabilities.

Specifications

Design
LED indicators Yes
Product colour Black
Performance
Built-in processor Yes
Internal memory 1024 MB
Flash memory 8000 MB
Control display unit No
Processor manufacturer MIPS
Product colour Black
Network
Ethernet LAN data rates 10,100 Mbit/s
Ports & interfaces
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
RS-232 ports 6
Serial interface type RS-232, RS-232/422/485
Power
Power consumption (typical) 6.6 W
Heat dissipation 22.5 BTU/h
DC input voltage 9 - 18 V
Weight & dimensions
Weight 6.08 lbs (2.76 kg)
Width 17" (431.8 mm)
Height 1.78" (45.1 mm)
Depth 9.12" (231.6 mm)
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 5 - 85%
Technical details
Built-in processor Yes
Indication
LED indicators Yes
Memory
Internal memory 1024 MB
Flash memory 8000 MB
Display
Control display unit No
Features
Built-in processor Yes
