1x RJ-45, 4x ICSLan, PoE, RS-232, IR, 45.15x431.8x231.64 mm
AMX

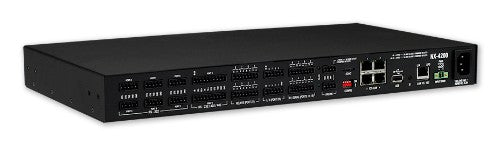

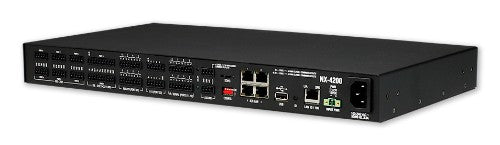

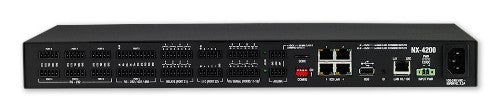

AMX NX-4200 gateway/controller 10, 100 Mbit/s
Part number:
FG2106-04
$3,024.56
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
- The NX-4200 is geared to meet the high-end control and automation requirements of the most sophisticated and complex business, educational and residential installations. With its generous number of ports, security features and Ethernet switching options, the NX-4200 is ideal for any large installation requiring stringent security measures
- With redundant power, built in Ethernet switch and enhanced security features like Dual NIC with POE, the NX-4200 provides versatility with the ability to integrate the largest number of devices in the NX Series of Integrated Controllers, including projectors, lighting, DVD and Blu-ray players, thermostats and other electronic equipment
Description
The NX-4200 / NetLinx NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-4200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. With its front panel display, built-in Ethernet switch and PoE capability, the NX-4200 is the ideal solution for demanding, technology-rich environments. The NX-4200’s all-in-one architecture also delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.Specifications
| Design | |
|---|---|
| LED indicators | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Performance | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Internal memory | 1024 MB |
| Flash memory | 8000 MB |
| Control display unit | Yes |
| Processor manufacturer | MIPS |
| Rack capacity | 1U |
| Product colour | Black |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 6 |
| Serial interface type | RS-232, RS-232/422/485 |
| Power | |
| Power consumption (typical) | 8.4 W |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Heat dissipation | 28.7 BTU/h |
| DC input voltage | 9 - 18 V |
| Weight & dimensions | |
| Weight | 7.61 lbs (3.45 kg) |
| Width | 17" (431.8 mm) |
| Height | 1.78" (45.1 mm) |
| Depth | 9.12" (231.6 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Technical details | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Indication | |
| LED indicators | Yes |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 8000 MB |
| Display | |
| Control display unit | Yes |
| Features | |
| Built-in processor | Yes |
| Number of processors installed | 1 |
