8 Ethernet Port, 100 m, 10/100 Mbps, IP30, 30 x 140 x 95 mm
Advantech

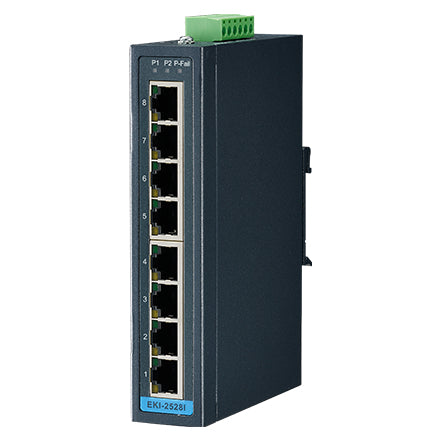

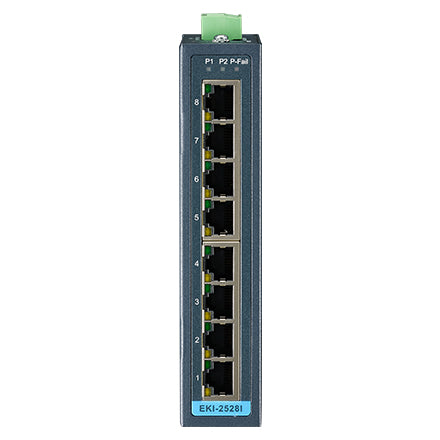

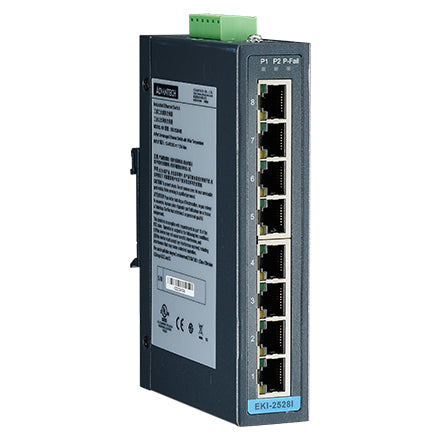

Advantech EKI-2528I-BE network switch Unmanaged Fast Ethernet (10/100) Black
Part number:
EKI-2528I-BE
Sale price
$175.82
Regular price
$223.00
Save
$47.18
21%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 - 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C
Description
The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 - 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | Terminal block (6-pin) |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC Class A EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 UL 60950-1 |
| Power | |
| Power protection features | Overload, Reverse polarity |
| Power consumption (typical) | 4.71 W |
| DC input voltage | 12 - 48 V |
| Power source | AC/DC |
| Power connector | Terminal block (6-pin) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power protection features | Overload, Reverse polarity |
| Other features | |
| Warranty period | 5 year(s) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 1.18" (30 mm) |
| Depth | 3.74" (95 mm) |
| Height | 5.51" (140 mm) |
| Performance | |
| Stackable | No |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Warranty period | 5 year(s) |
| Compliance certificates | CE |
| Certificates | |
| Certification | CE, FCC Class A EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 UL 60950-1 |
| Compliance certificates | CE |
| Indication | |
| LED indicators | Yes |
