100m, 30 x 140 x 95mm, IP30, 5W, 12 - 48V, 100Mbps
Mbps Ethernet ports. Additionally the EKI-2525MI provides one multi-mode fiber-optic ports, while the EKI-2525SI provides one single-mode fiber-optic port. Using fiber-optics
prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.
EKI-2525MI/2525SI have industrial-grade designs, assuring high reliability and stability in harsh environments. This makes them a robust bridge between enterprise fiber-optic
backbones and Ethernet devices. EKI-2525MI/2525SI includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected,
so MDI or MDI-X are automatically selected and a crossover cable is not required. All Ethernet ports have memory buffers that support the store and forward mechanism, assuring
all data is transmitted properly.
Advantech

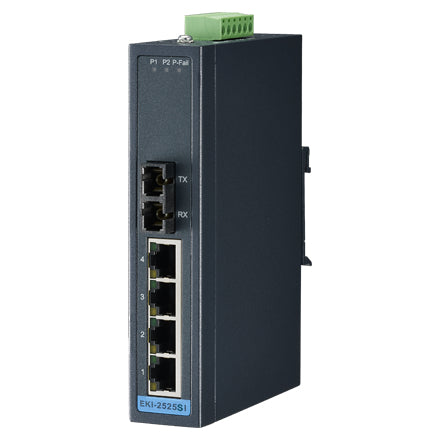

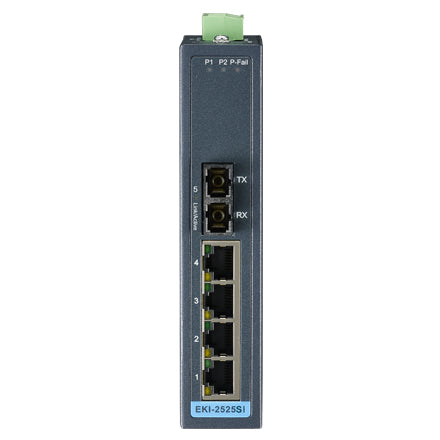

Advantech EKI-2525SI-AE network switch Unmanaged Fast Ethernet (10/100) Black
Part number:
EKI-2525SI-AE
$286.96
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
- Provides 1 x 100 Mbps Single-mode SC type fiber optic port
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Provides redundant 12 ~ 48 VDC power input
- Provides flexible mounting: DIN-rail and wall mount
Description
EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. The EKI-2525MI/2525SI have four 10/100Mbps Ethernet ports. Additionally the EKI-2525MI provides one multi-mode fiber-optic ports, while the EKI-2525SI provides one single-mode fiber-optic port. Using fiber-optics
prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.
EKI-2525MI/2525SI have industrial-grade designs, assuring high reliability and stability in harsh environments. This makes them a robust bridge between enterprise fiber-optic
backbones and Ethernet devices. EKI-2525MI/2525SI includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected,
so MDI or MDI-X are automatically selected and a crossover cable is not required. All Ethernet ports have memory buffers that support the store and forward mechanism, assuring
all data is transmitted properly.
Specifications
| Optical fiber | |
|---|---|
| Fiber optic connector | SC, ST |
| Transmission distance (max) | 30 km |
| Maximum transfer distance (Single-mode) | 1181102.4" (30000 m) |
| Performance | |
| Stackable | No |
| Mean time between failures (MTBF) | 382904 h |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 382904 h |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC, ST |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
| Throughput | 100 Mpps |
| Design | |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 5 W |
| DC input voltage | 12 - 48 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 1.18" (30 mm) |
| Depth | 5.51" (140 mm) |
| Height | 3.74" (95 mm) |
| Sustainability | |
| Sustainability compliance | Yes |
