16K MAC addresses, 256 static MAC, IEEE 802.1D, QoS (IEEE 802.1P, 8 priority queues), VLAN, GVRP, IGMP, MVR, RMON, SNMP, MIB II, RFC1493, 2674 and 1757 MIB, and private MIB, VDSL2 bonding, ADSL2+ fallback & bonding, G.INP (G.998.4), IPv6
The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE.
Ultra high-speed transmission with 30a profile support
The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports.
Triple Play ready
The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire.
Complete QoS for service differentiation
The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Zyxel

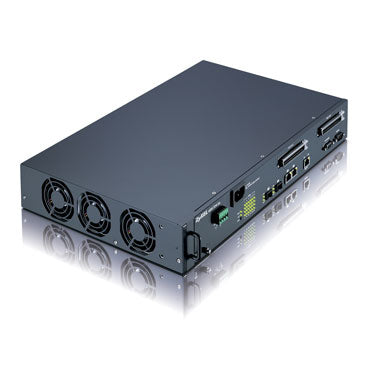

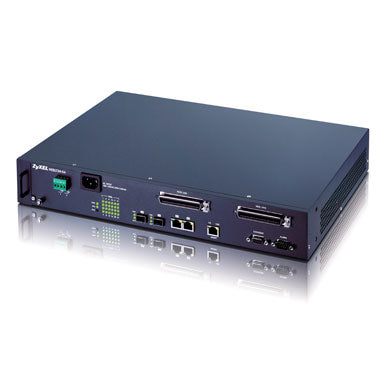

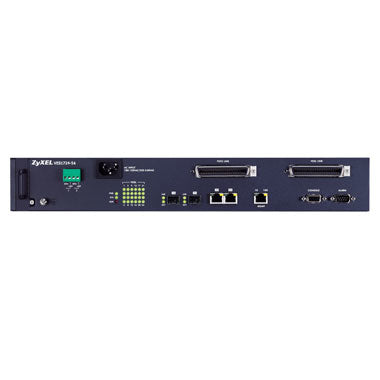

Zyxel VES1724-56 network switch Managed 1.5U Black
Part number:
VES1724-56
$3,075.08
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Complies with VDSL2 standards including ITU-T G.993.2, G994.1 and G.997.1
- A 24-port DSLAM with downstream/upstream performance of up to 100/100 Mbps (30a profile)
- Comprehensive Triple Play functions
- Complete QoS for service differentiation
- VDSL2 bonding & G.INP
- ADSL2+ fallback & bonding
Description
Compliant with ITU-T G.993.2, G994.1 and G.997.1The VES1724 conforms to G.993.2, G994.1 and G.997.1 to ensure the interoperability with standard-compliant VDSL CPE.
Ultra high-speed transmission with 30a profile support
The VES1724 supports 30a profile with 100 Mbps in both upstream and downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724 can support low-concentration interconnection from the subscriber ports to the network interface ports.
Triple Play ready
The VES1724 supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. The VES1724 also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724 allows the operators to provide Triple Play services over the same copper wire.
Complete QoS for service differentiation
The VES1724 supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | MIB II, RFC1493, 2674 and 1757 MIB, and private MIB |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 3 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | Multicast VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| MAC address table | 256 entries |
| Security | |
| Static port security | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| MAC address entries | Static MAC address entries |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Form factor | 1.5U |
| Product colour | Black |
| Rack mounting | Yes |
| Certification | RoHS K.20 ETSI300-019 EN60950-1 CSA60950-1 UL60950-1 IEC60950-1 EMC FCC - Class A EN55022 - A ETSI300-386 |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| AC input voltage | 100 - 264 V |
| AC input frequency | 60 Hz |
| DC input voltage | 36 - 72 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 65 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Virtual LAN features | |
| Virtual LAN features | Multicast VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 11.8" (300 mm) |
| Height | 2.6" (66 mm) |
| Weight | 11 lbs (5 kg) |
| Packaging data | |
| Package width | 22" (560 mm) |
| Package depth | 20.6" (523 mm) |
| Package height | 26.6" (675 mm) |
| Package weight | 14.8 lbs (6.7 kg) |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Technical details | |
| Form factor | 1.5U |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Certificates | |
| Certification | RoHS K.20 ETSI300-019 EN60950-1 CSA60950-1 UL60950-1 IEC60950-1 EMC FCC - Class A EN55022 - A ETSI300-386 |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
