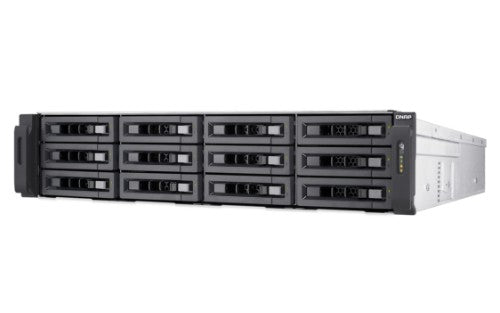

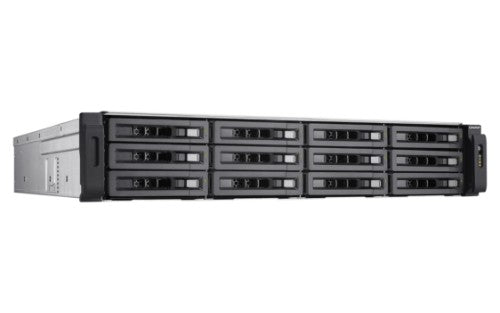

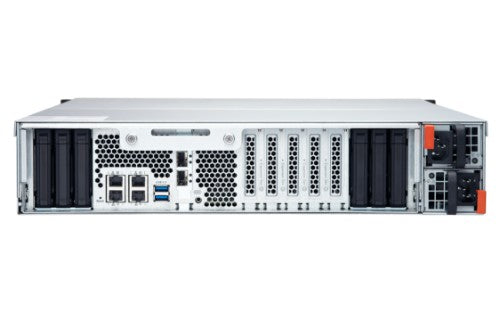

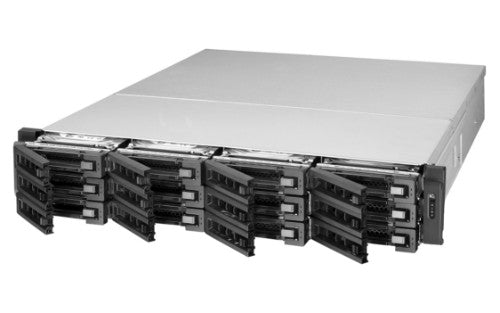

QNAP TES-1885U, NAS, Rack (2U), Intel® Xeon® D, D-1521, 32 GB, DDR4
QNAP
QNAP TES-1885U NAS Rack (2U) Intel® Xeon® D D-1521 32 GB DDR4 QNAP Turbo System Aluminum, Black
Part number:
TES-1885UD152132GRUS
$4,799.90
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
QNAP TES-1885U. Type: NAS. Chassis type: Rack (2U). Device class: Large Enterprise Business. Processor family: Intel® Xeon® D, Processor model: D-1521, Processor frequency: 2.4 GHz. Internal memory: 32 GB, Internal memory type: DDR4. Operating system installed: QNAP Turbo SystemSpecifications
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Bad block scan | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives supported | 18 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, JBOD |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 45 W |
| Stepping | V2 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor socket | BGA 1667 |
| Processor series | Intel Xeon D-1500 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Broadwell |
| Processor code | SR2DF |
| Processor cache | 6 MB |
| Processor boost frequency | 2.7 GHz |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| ECC supported by processor | Yes |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Conflict-Free processor | Yes |
| Processor ARK ID | 91202 |
| Processor frequency | 2.4 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1521 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 32 GB |
| Memory clock speed | 2133 MHz |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Flash memory | 4096 MB |
| Memory form factor | DIMM |
| Network | |
| Link aggregation | Yes |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Product colour | Aluminum, Black |
| Number of fans | 4 fan(s) |
| LED indicators | LAN, Status |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Product colour | Aluminum, Black |
| Number of users | 4096 user(s) |
| Noise level | 58.9 dB |
| Multilingual support | Yes |
| LED indicators | LAN, Status |
| Chassis type | Rack (2U) |
| Number of fans | 4 fan(s) |
| Performance | |
| Built-in iTunes server | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| Share folder | 512 |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox |
| Universal Plug and Play (UPnP) | Yes |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Reset button | Yes |
| Operating system version | 4.2 |
| Operating system installed | QNAP Turbo System |
| Number of users | 4096 user(s) |
| Noise level | 58.9 dB |
| Multilingual support | Yes |
| Management protocols | SNMP |
| Third-party support | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.36" (6 cm) |
| Number of fans | 4 fan(s) |
| Security | |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operating system version | 4.2 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Power supply unit (PSU) capacity | 450 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 229.53 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 20.9" (530.5 mm) |
| Height | 3.46" (88 mm) |
| Weight | 33.7 lbs (15.3 kg) |
| Package weight | 46.7 lbs (21.2 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 32 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 46.7 lbs (21.2 kg) |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 91202 |
