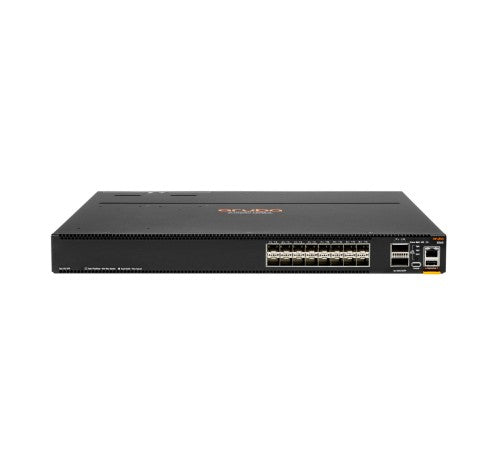

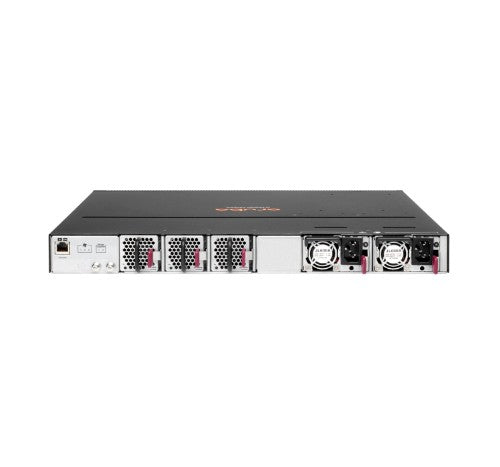

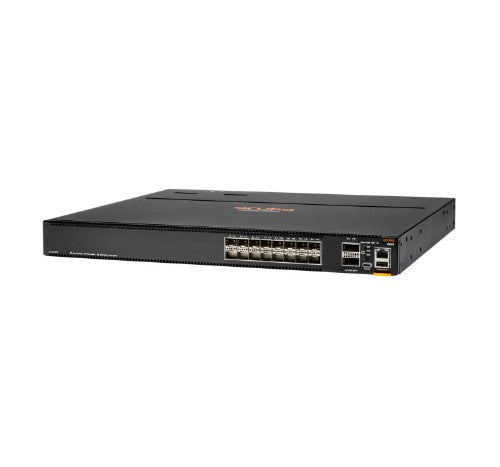

HPE Aruba Networking Aruba 8360-16Y2C, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking Aruba 8360-16Y2C. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. MAC address table: 212992 entries, Switching capacity: 1200 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Data transmission
Number of VLANs	4094
Throughput	2000 Mpps
Packet buffer memory	32 MB
MAC address table	212992 entries
Switching capacity	1200 Gbit/s
Jumbo frames support	Yes
Performance
Packet buffer memory	32 MB
Processor frequency	1800 MHz
Internal memory	16384 MB
Flash memory	32768 MB
Built-in processor	Yes
Technical details
Form factor	1U
Product colour	Black
Processor frequency	1800 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
QSFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Console port	RJ-45
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP client, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP 2, SNMP 3, RMON, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Memory
Packet buffer memory	32 MB
Internal memory	16384 MB
Flash memory	32768 MB
Design
Form factor	1U
Product colour	Black
Rack mounting	Yes
Number of fans	3 fan(s)
Power
Power consumption (max)	550 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	1109 BTU/h
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	16" (406.4 mm)
Height	1.73" (44 mm)
Weight	17 lbs (7.71 kg)
Other features
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
