Quad-Channel 16Gb/s Gen 6 Fibre Channel PCIe 3.0 Host Bus Adapter

Description

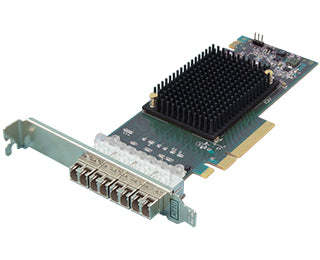

The ATTO Celerity FC-164P leverages two next-generation storage technologies – PCIe 3.0 interconnect and 16-Gigabit Fibre Channel to provide an advanced storage connectivity solution with high performance, intelligence and scalability. Celerity FC-164P 16Gb/s quad-channel HBAs deliver up to 6400 MB/s in a single PCIe slot solution, allowing original equipment manufacturers and system integrators to design state-of-the-art data infrastructures.

Meeting tomorrow's connectivity needs today, Celerity Fibre Channel Host Bus Adapters (HBAs) increase overall Fibre Channel system performance and drive intelligence all the way to the edge of the SAN utilizing ATTO's Advanced Data Streaming (ADS™) Technology. Included with all ATTO HBAs are easy-to-use utilities ConfigTool™ enabling management, monitoring and configuration which leverages an intuitive GUI.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	6400 Mbit/s
Wireless LAN features
Wi-Fi	No
Technical details
Product colour	Green
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Network
Wi-Fi	No
Maximum data transfer rate	6400 Mbit/s
Design
Product colour	Green
Internal	Yes
Power
Power consumption (typical)	11.9 W
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Depth	6.6" (167.6 mm)
Height	2.71" (68.8 mm)
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
