Mini Hardened Media Converter,100Mbps, Multimode 850nm, LFPT, 2km, ST, AC adapter
Advantech

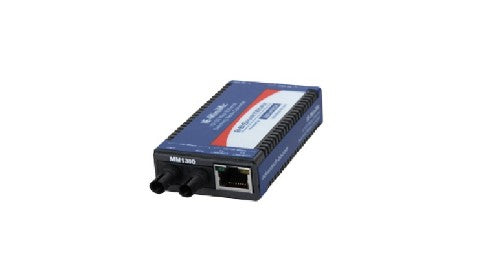

Advantech IMC-350I-M8ST-PS-A network media converter 100 Mbit/s 850 nm Multi-mode Black, Blue
Part number:
IMC-350I-M8ST-PS-A
Sale price
$175.42
Regular price
$294.00
Save
$118.58
40%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Centralized powered IMC-318I chassis
- Supports Link Fault Pass Through (LFPT)
- IEEE802.3af compliant (IMC-350I series as PoE-PD)
- Industrial grade design that supports an extended operating temperature(IMC-350I series)
- Metal enclosure with compact size
Description
Miniature Media Converter, Wide Temp, 100Base-SX/TX, Multi-mode 850nm, LFPT, 2km, ST type, w/ AC adapterSpecifications
| Network | |
|---|---|
| Fiber optic connector | ST |
| Jumbo frames support | Yes |
| Jumbo frames | 1916 |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Duplex system | Full |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Housing material | Metal |
| Wavelength | 850 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Plug and Play | Yes |
| Internal | No |
| Performance | |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Indication | |
| LED indicators | Status |
| Design | |
| Housing material | Metal |
| LED indicators | Status |
| Product colour | Black, Blue |
| Certification | CE, FCC Class B, UL/cUL, CSA |
| Internal | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC input frequency | 50 - 60 Hz |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black, Blue |
| Weight & dimensions | |
| Width | 1.8" (45.7 mm) |
| Depth | 3.35" (85.1 mm) |
| Weight | 11.2 oz (317 g) |
| Height | 0.831" (21.1 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -35 - 75 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Packaging content | |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC Class B, UL/cUL, CSA |
