4GE PoE+1G+1G SFP, Unmanaged Ethernet Switch, IEEE802.3af/at, 48V - 53VDC
Advantech

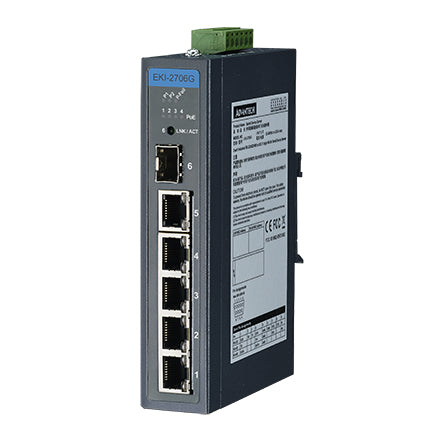

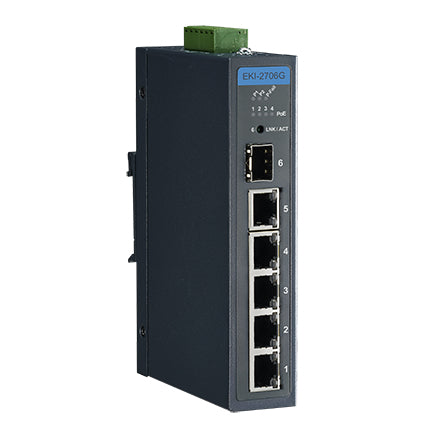

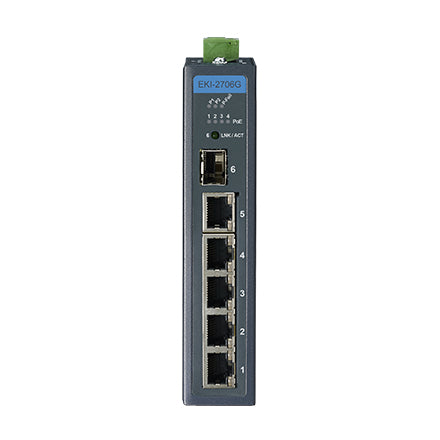

Advantech EKI-2706G-1GFP-AE network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
EKI-2706G-1GFP-AE
Sale price
$422.29
Regular price
$500.40
Save
$78.11
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
- Supports jumbo frame transmission up to 9 kbytes
- DIN-rail with IP30 metal mechanism
- Redundant 48 VDC power input
- 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
Description
The EKI-2706 series support 48VDC redundant power input and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The EKI-2706 series support up to 4-port IEEE 802.3 af/at PoE /PoE ports, it is more convenient for users to power up their devices. Each port of EKI-2706 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2706 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.Specifications
| Performance | |
|---|---|
| Packet buffer memory | 1 MB |
| Mean time between failures (MTBF) | 1697086 h |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 1697086 h |
| Housing material | Metal |
| Compliance certificates | RoHS |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Optical fiber | |
| Transmission distance (max) | 110 km |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Certificates | |
| Electromagnetic compatibility | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | CE, FCC Class A x, RoHS |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Speed |
| Housing material | Metal |
| Electromagnetic compatibility | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | CE, FCC Class A x, RoHS |
| Indication | |
| LED indicators | Activity, Link, Speed |
| Power | |
| Power consumption (typical) | 2 W |
| Input current | 1 A |
| DC input voltage | 24 - 48 V |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 1.18" (30 mm) |
| Depth | 3.74" (95 mm) |
| Height | 5.51" (140 mm) |
| Weight | 15.9 oz (450 g) |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
