10/100/1000 Industrial Temperature SFP Media Converter
Perle

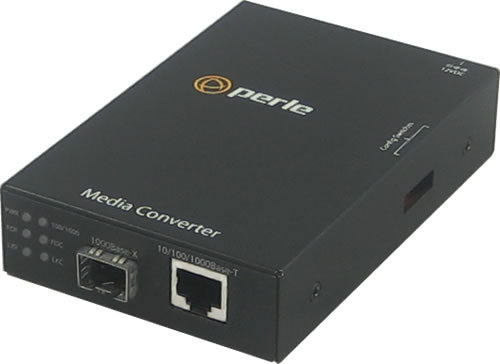

Perle S-1110-SFP-XT network media converter 1000 Mbit/s
Part number:
05090750
$354.79
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
SFP Slot, 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-X or 100BASE-X - SFP Slot (empty). Extended Temperature, terminal block power connector for external power source . Perle's Industrial Temperature Media Converters transparently connect copper to fiber in locations that are exposed to harsh extended temperatures of -40F to 167F ( -40C to 75C ).Specifications
| Network | |
|---|---|
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-X |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 3937" (100 m) |
| Mean time between failures (MTBF) | 576450 h |
| Hot-swap | Yes |
| Features | |
| LED indicators | Yes |
| Hot-swap | Yes |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Input voltage | 12 V |
| Power consumption (typical) | 2.1 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Weight | 10.6 oz (300 g) |
| Dimensions (WxDxH) | 4.72 x 3.15 x 1.02" (120 x 80 x 26 mm) |
| Package width | 5.91" (150 mm) |
| Package height | 1.57" (40 mm) |
| Package weight | 15.2 oz (430 g) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Packaging data | |
| Package width | 5.91" (150 mm) |
| Package length | 8.27" (21 cm) |
| Package height | 1.57" (40 mm) |
| Package weight | 15.2 oz (430 g) |
| Technical details | |
| Package length | 8.27" (21 cm) |
| Maximum transfer distance | 3937" (100 m) |
| Hot-swap | Yes |
| Internal | No |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Safety | UL 60950-1, EN60950, CE |
| LED indicators | Yes |
| Certification | FCC 15 A, EN55022 A CISPR 22 A EN61000-3-2 EN55024 Reach, WEEE ECCN: 5A991A |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 576450 h |
| Management features | |
| Hot-swap | Yes |
| Certificates | |
| Safety | UL 60950-1, EN60950, CE |
| Certification | FCC 15 A, EN55022 A CISPR 22 A EN61000-3-2 EN55024 Reach, WEEE ECCN: 5A991A |
| Compliance certificates | RoHS |
| Other features | |
| Package length | 8.27" (21 cm) |
| Dimensions (WxDxH) | 4.72 x 3.15 x 1.02" (120 x 80 x 26 mm) |
