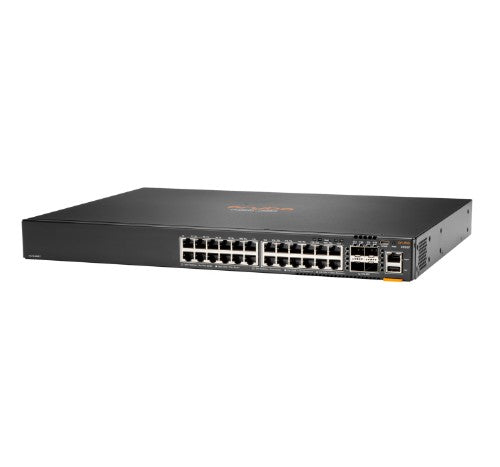

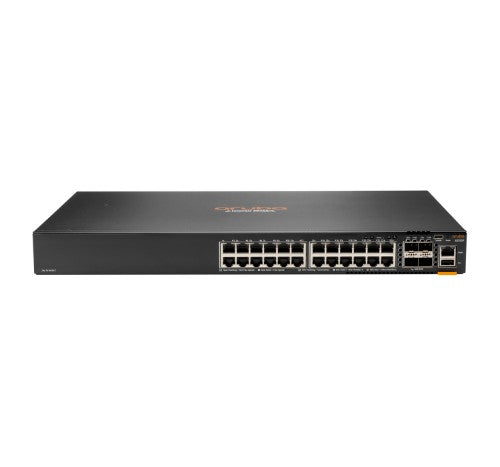

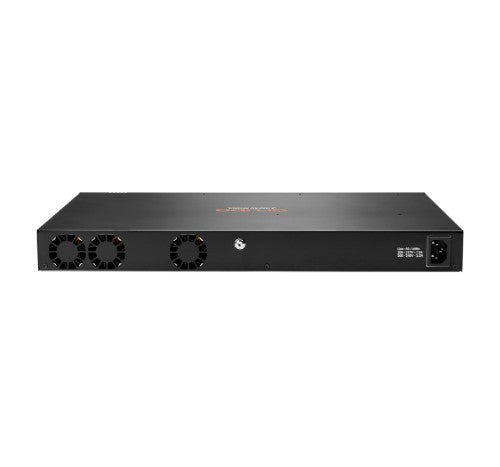

HPE Aruba Networking Aruba 6200F 24G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 6200F 24G 4SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Optical fiber
Transmission distance (max)	10 km
Data transmission
Throughput	95.2 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Packet buffer memory	8 MB
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Performance
Physical stacking (units)	8
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	8192 MB
Flash memory	16 MB
Processor model	ARM Cortex-A72
Packet buffer memory	8 MB
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	59 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442 mm)
Depth	12.9" (327 mm)
Height	1.73" (43.9 mm)
Weight	9.61 lbs (4.36 kg)
Technical details
Physical stacking (units)	8
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	1800 MHz
Rack mounting	Yes
Memory
Packet buffer memory	8 MB
Memory type	DDR4-SDRAM
Internal memory	8192 MB
Flash memory	16 MB
Logistics data
Harmonized System (HS) code	85176990
