Zyxel SFP-LX-10-D, 1000 Mbit/s, SFP, LC, 50/125,62.5/125 µm, 393700.8" (10000 m), 1310 nm
Zyxel

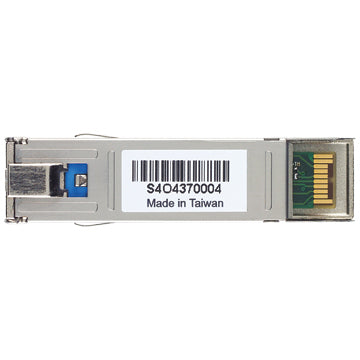

Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm
Part number:
SFPLX10D
$32.98
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Zyxel SFP-LX-10-D. Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP, Fiber optic connector: LC. Input voltage: 3.15 V, Maximum voltage: 3.45 V. Safety: Class 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV. Width: 2.2" (56 mm), Depth: 0.528" (13.4 mm), Height: 0.491" (12.5 mm)Specifications
| Performance | |
|---|---|
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 393700.8" (10000 m) |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Rx power (max) | -20 dBmW |
| Power | |
| Maximum voltage | 3.45 V |
| Input voltage | 3.15 V |
| Certificates | |
| Safety | Class 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Network | |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC |
| Weight & dimensions | |
| Width | 2.2" (56 mm) |
| Depth | 0.528" (13.4 mm) |
| Height | 0.491" (12.5 mm) |
| Features | |
| Safety | Class 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV |
