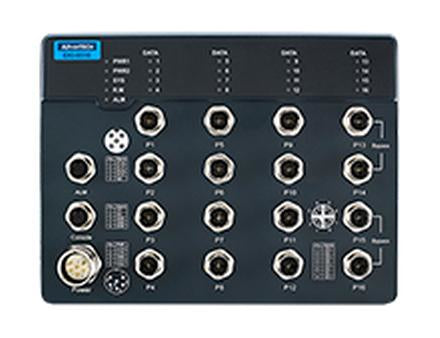

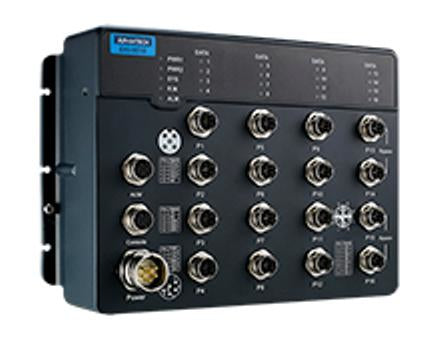

Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black
  • Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black
  • Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black
  • Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black
Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black
Advantech

Advantech EKI-9516G-4GMW Managed Gigabit Ethernet (10/100/1000) Black

Part number: EKI-9516G-4GMW-AE
$3,121.10 $4,160.00
Save $1,038.90
25% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

16.8 - 137.5 VDC, 16 ports, 254 x 174 x 64.5 mm, 3.7kg

Key Features

  • 12 x M12 X-Coded 10/100/1000 Mbps ports + 4 x M12 X-Coded 10/100/1000 Mbps Byapss ports
  • Complies with EN50155 & EN50121-3-2
  • Operating temperature: -40 ~ 75°C
  • Supports X-Ring Pro for rapid and predictable convergence
  • Supports IXM for fast and easy maintenance
  • Supports N-Key for quick configuration and backup
  • M12 connector with IP67 rugged housing

Description

The EKI-9516 series Ethernet switch is designed for railway applications with rugged housing and high EMC performance. The EKI-9516 series is a suitable networking solution for rolling stock and wayside applications.

Specifications

Ports & interfaces
Switching optical modules type Gigabit Ethernet
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory 4.1 MB
Technical details
Product colour Black
Housing material Aluminum
Compliance certificates CE
Power over Ethernet (PoE)
Power protection features Overload, Reverse polarity
Management features
Switch type Managed
Optical fiber
Switching optical modules type Gigabit Ethernet
Data transmission
Jumbo frames 9216
Packet buffer memory 4.1 MB
Jumbo frames support Yes
Certificates
Certification EN55032/24, EMC DIRECTIVE 2014/30/EU, CISPR 32, FCC Part 15 Subpart B Class A, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN50155, EN50121-3-2, EN61000-6-2, IEC 60068-2-31, IEC 61373
Memory
Packet buffer memory 4.1 MB
Design
Wall mountable Yes
International Protection (IP) code IP67
Product colour Black
Housing material Aluminum
Certification EN55032/24, EMC DIRECTIVE 2014/30/EU, CISPR 32, FCC Part 15 Subpart B Class A, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN50155, EN50121-3-2, EN61000-6-2, IEC 60068-2-31, IEC 61373
Power
Power protection features Overload, Reverse polarity
Power consumption (typical) 17 W
DC input voltage 24 - 48 V
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 10" (254 mm)
Depth 2.54" (64.5 mm)
Height 6.85" (174 mm)
Weight 8.16 lbs (3.7 kg)
