550VA, 330W, 10 Outlets, 632 Joules, NEMA 5-15, 3.4kg

Description

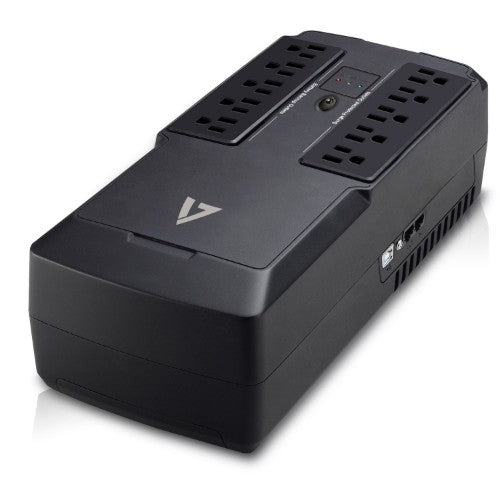

The 550VA UPS from V7 is a backup power source for desktop computers, network workstations and other professional and consumer electronic devices. The UPS is Energy Star Certified, ensuring maximum efficiency and is equipped with 10 Outlets (5 surge only and 5 with battery backup), for a consistent flow of electricity to help prevent costly equipment failure and data loss during power failures or other power issues. The convenient, compact desktop design is quick and easy to deploy, plus it features top facing outlets for fast deployment. Additionally, the UPS has USB connectivity to allow for additional configuration and control, plus audio and visual alarms for immediate warning of battery, load or other issues.

- 550VA Desktop UPS with 10 Outlets (5 battery backup + 5 surge only)
- Convenient and compact desktop design with top facing outlets
- Energy Star Certified ensuring efficient and eco friendly power.
- USB connectivity to your PC for optional advanced monitoring and control
- Audio & Visual alarms for immediate warning of battery, load, and other issues

Specifications

Power
Output power	330 W
Surge energy rating	632 J
Output power capacity	0.55 kVA
Ports & interfaces
Cable length	72" (1.83 m)
Serial interface	Yes
AC outlets quantity	10 AC outlet(s)
Power plug	NEMA 5-15
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Waveform	Sine
LED indicators	Yes
Surge protection	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Features
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Waveform	Sine
Output power	330 W
Surge energy rating	632 J
Surge protection	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	0.55 kVA
Battery
Battery voltage	12 V
Battery capacity	5 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Typical backup time at half load	8 min
Typical backup time at full load	2 min
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Certification	FCC, TUV, REACH
Cable length	72" (1.83 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Package width	5.59" (142 mm)
Package depth	14.8" (376 mm)
Package height	9.33" (237 mm)
Weight	7.5 lbs (3.4 kg)
Width	6.24" (158.5 mm)
Package weight	8.16 lbs (3.7 kg)
Height	3.74" (95 mm)
Depth	12" (305 mm)
Packaging data
Quick installation guide	Yes
Warranty card	Yes
Package width	5.59" (142 mm)
Package depth	14.8" (376 mm)
Package height	9.33" (237 mm)
Package weight	8.16 lbs (3.7 kg)
Certificates
Certification	FCC, TUV, REACH
Packaging content
Quick installation guide	Yes
Warranty card	Yes
